CHIPQUIK Deep-Space Liquid Metal™ Thermal Compound. Liquid Metal, non-curing, flowable, thermally conductive heat sink compound. Pure Liquid Metal. Provides extremely high thermal conductivity of 79 W/mK, low bleed and high temperature stability. Electrically Conducting. Alloy contains Gallium and is not compatible with Aluminum Heat Sinks.
Specifications
Alloy: 100% Deep-Space Liquid Metal™ Pure Metal Proprietary Formula
Heat Sink Material Compatibility: Nickel-Plated Copper, Nickel, Copper
Heat Sink Material Incompatibility: Aluminum (Do Not Use with Aluminum Heat Sinks)
Density: 6.8g/cc
Thermal Conductivity: 79 W/mK
Thermal Resistance: 0.003 C*cm2/W
Operating Temperature (Continuous): -40 to 150C (-40 to 302F)
Operating Temperature (Peak): 200C (392F)

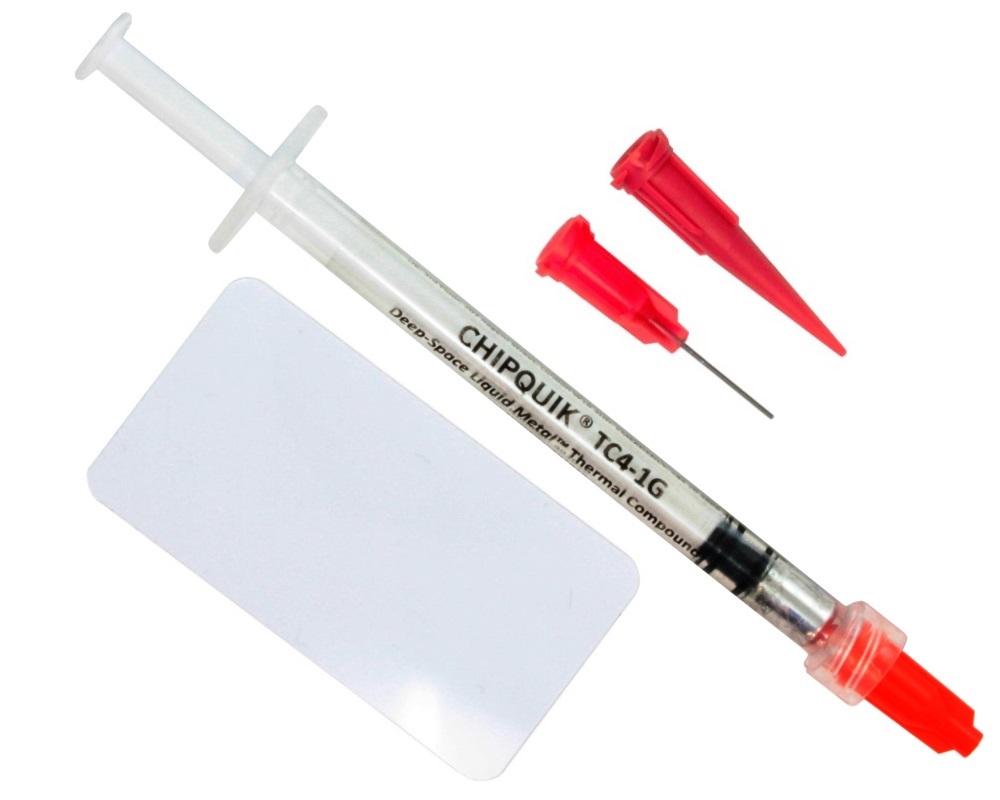

Size: 1g/1cc Manual Syringe w/ 2x 25-gauge tips, squeegee
Application Instructions
Apply sparingly with provided tips. Thinly spread using provided squeegee. Deep-Space Liquid Metal™ is highly conductive and is designed to fill all small cracks and crevices in surfaces to achieve extremely high thermal conductivity. Deep-Space Liquid Metal™ is thermally and electrically conductive, avoid getting it on electrical pins/pads/traces/BGA balls.
