Panavise 396 Wide Opening Head sold by Howard Electronics

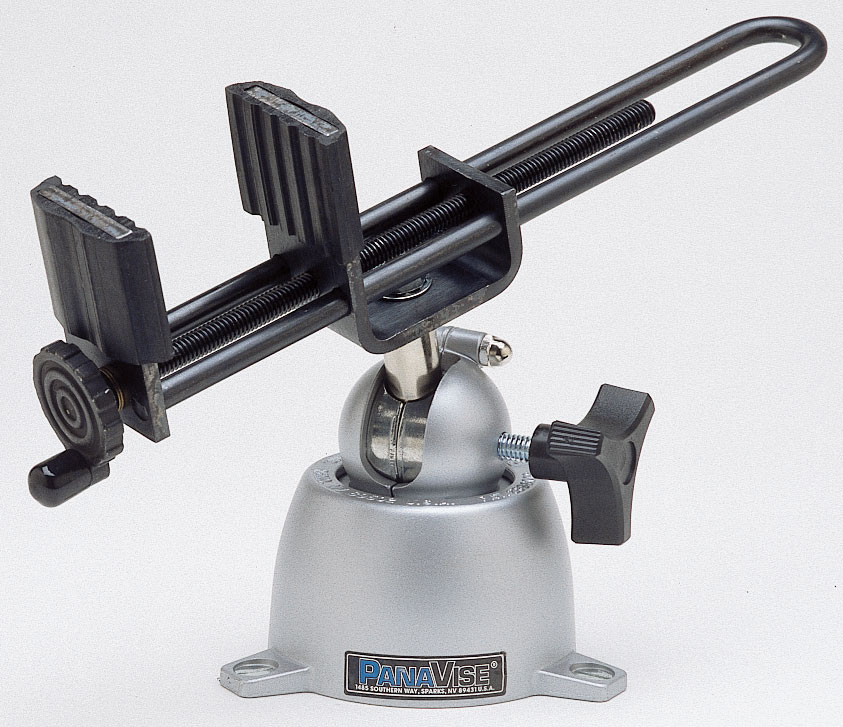

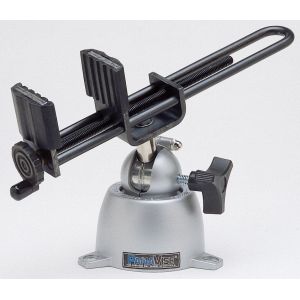

396 Wide Opening Head PanaVise
The work holding tool with EXPANDED capabilities!
Working on larger objects? The jaws on this vise open a generous 6".
• Wide opening jaws open to 6" (152.4mm) and close to 0"
• Ribbed, neoprene jaw pads are 1.875" (47.6mm) high x 1.5" (38.1mm) wide and provide a sure grip to hold and insulate PC boards and other larger objects; reverse the pads and the wide "V" holds delicate cylindrical objects
• Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation
• Base accepts all 300 series Heads and any 5/8" (15.9mm) diameter shaft
• Base features 4.3125" (109.5mm) bolt circle countersunk for three 1/4" (6.3mm) flathead screws (not included)
• Height: 7.3125" (185.7mm), Weight: 3.0 lbs. (1.4kg)
| Accessories Available for the Wide Opening Head PanaVise | ||
 Model: 203 PV Jr. Head |
 Model: 303 Standard Head |
 Model: 304 Low Profile Head |
 Model: 308 Weighted Base Mount |
 Model: 310 Surface Plate Base Mount |
 Model: 311 Bench Clamp Base Mount |
 Model: 312 Tray Base Mount |
 Model: 335 Magnetic Base Mount |
 Model: 337 Fixturing Head |
 Model: 346 Deluxe Neoprene Jaw Pads |
 Model: 376 Self-Centering, Extra Wide Opening Head |
 Model: 385 Micrometer Head |
| In Use Example for the Wide Opening Head PanaVise | |||||||
|
|
||||||
