NANE JBC Tools Nano Soldering Station

JBC Tools
List price: $1,690.00
$1,521.00
You save: $169.00 (10%)
NANE-1C
+ −
Add to wish list Add to comparison list

JBC Tools NANE-1C Nano Rework Station is the best solution to repair very small-sized components at high precision such as chips 0402, 0201, 01005, etc. Choose 120 Volt or 230 volt.

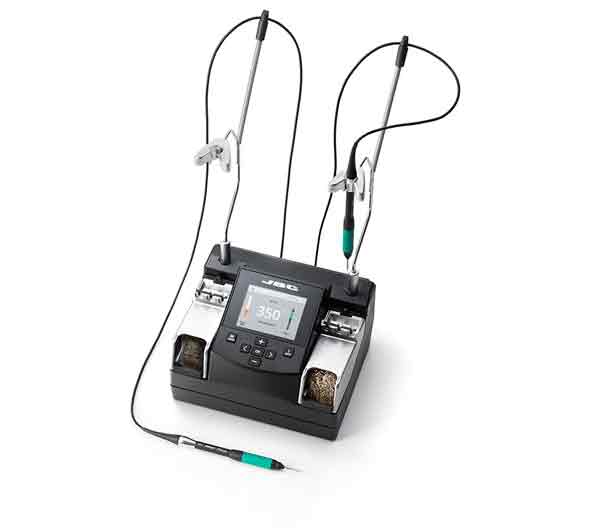

JBC Tools NANE-1C Nano Rework Station

The NASE-1C JBC Tools Nano Rework Station works simultaneously with 2 NT115 Nano Handpieces.

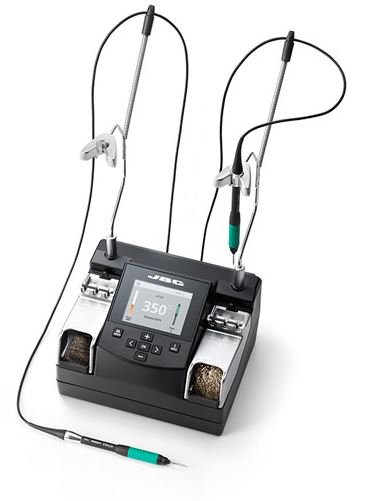

NANE-1C JBC Tools Nano Rework Station

The NANE-1C Nano Rework Station TFT Screen (Thin Film Transistor) and Capacitive Keyboard Control unit featuring digital read-out that allows precise temperature and tool control. The JBC Tools NANE-1C incorporates the JBC Tools Exclusive Heating System and the intelligent Seep and Hibernation features. Using the JBC Tools NANE-1C menu you can personalize over 20 parameters to help manage the soldering process. It works simultaneously with 2 NT115-A Nano Soldering Irons. The short distance between the tip and the handle offers maximum control even using a microscope.

JBC Tools NANE-1C Nano Rework Station Includes

Control Unit: NAE-1C with tip cleaning system
Tools: 2 NT115-A Nano Soldering Handpiece
Cartridges Included: C115101 x1 - C115103 x1 - C115115 x2 - C115107 x1 - C115112 x1 - C115113 x2.

JBC Tools NANE-1C Nano Rework Station Specifications

Weight 1.8 kg (4.0 lb)
Dimensions 170 x 90 x 135 mm
Voltage 120V / 230V / 100V
Input Fuse 0.5A / 0.2A / 0.5A
Output Peak Power 14W per tool
Temperature selection 90-450 ºC (190-840 ºF)
Idle temp. stability (still air) ±3 ºC (±5.5 ºF)
Tip to ground resistance <2 ohms
Ambient operating temp. 10-40 ºC (50-104 ºF)
Communication connectors USB-A / USB-B / Pedal
Robot connector RJ12 for RS-232 protocol
ESD safe
Package weight 2.25 kg (4.96 lb)
Package dimensions 276 x 276 x136 mm

Purchase a JBC Tools NANE-1C Nano Rework Station sold by Howard Electronics Today!

Vendors :
JBC Tools
Weight:
1.8 kg (4.0 lb)
Input Fuse:
0.5A / 0.2A / 0.5A
Output Peak Power:
14W per tool
Temperature Selection:
90-450 ºC (190-840 ºF)
Idle temp. stability (still air):
±3 ºC (±5.5 ºF)
Ambient operating temp.:
10-40 ºC (50-104 ºF)
Communication connectors:
USB-A / USB-B / Pedal
Save 10% JBC Tools NT115-A Nano Handpiece
NT115-A

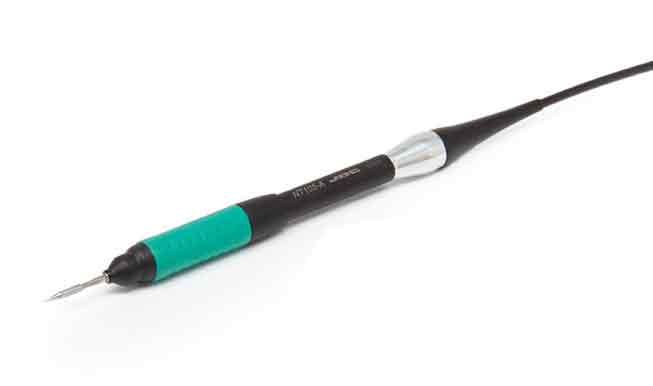

NT115-A JBC Tools Nano Handpiece
$117.00 $105.30

NT115-A - Nano Handle. The JBC smallest handle for soldering very small-sized components requiring the greatest precision such as chips 0402, 0201, 01005,

+ −
Add to wish list Add to comparison list

NANE Manual (NANE-A_MANUAL.pdf, 3,606 Kb) [Download]

Nano Tools Brochure (Foll_NP105-B_eng.pdf, 1,598 Kb) [Download]

Excellence Range (excellence_range_eng.pdf, 1,835 Kb) [Download]

Exploded View (EXPLODED_NANE-A.pdf, 520 Kb) [Download]

Save 10% JBC - C105-116
C115-116
C115-116 (0.2mm x 0.1mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-106
C115-106
C115-106 (0.5mm x 5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

JBC Tools C105-106 Tip for the NA-1A (0.5mm)

Save 10% JBC - C105-109
C115-109
C115-109 (0.6mm x 5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

JBC Tools C105-109 Tip for the NA-1A (0.6mm)

Save 10% JBC - C105-108
C115-108
C115-108 (0.6mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

JBC Tools C105-108 Tip for the NA-1A (0.6 x 0.3mm)

Save 10% JBC - C105-117
C115-117
C115-117 (.4mm x 0.2mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

JBC C105-117 Soldering Tip for NT105 and NP105 Nano

Save 10% JBC - C105-107
C115-107
C115-107 (0.8mm x 5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

JBC Tools C105-107 Tip for the NA-1A (0.8mm)

Save 10% JBC - C105-114
C115-114
C115-114 (1.8mm x 0.5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC Tools C105125 Chisel Nano Tip
C115-125
C115-125 (1mm x 0.2mm) JBC Tools Chisel Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-111
C115-111
C115-111 (3.5mm x 0.7mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-211
C115-211
C115-211 (3.5mm x 0.7mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

C105-211 Soldering Tip for NT105 and NP105 Nano Station

Save 10% JBC Tools C105-126 Chisel JBC Tip for the NA-1A (0.1 ) C105 cartridges are the smallest of the JBC range.
C115-126
C115-126 0 0.1 JBC Tools Conical Nano Soldering Cartridge
$51.00 $45.90
C105-126, JBC Tools
Save 10% JBC Tools C105124 Bent Soldering Cartridge
C115-124
C115-124 ( 0.1 S1 ) JBC Tools Bent Nano Soldering Cartridge
$51.00 $45.90
C105-124, JBC Tools
Save 10% JBC - C105-110
C115-110
C115-110 (0.5mm x 4.5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

JBC Tools C105-110 Tip for the NA-1A (0.5mm)

Save 10% JBC - C105-120
C115-120
C115-120 (1mm x 0.2mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-115
C115-115
C115-115 (1mm x 6mm) JBC Tools Nano Soldering Cartridge
$62.00 $55.80

JBC Tools C105-115 Tip for the NA-1A (1.0mm)

Save 10% JBC - C105-212
C115-212
C115-212 (2.5mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

C115-212 Soldering Tip for NT115 and NP115 Nano Station

Save 10% JBC - C105-223
C115-223
C115-223 (2.4mm x 0.6mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90

C105-223 Soldering Tip for NT105 and NP105 Nano Station

Save 10% JBC - C105-103
C115-103
C115-103 0.3mm JBC Tools Nano Soldering Cartridge
$51.00 $45.90

C105-103 JBC Tip for the NA-1A (0.3mm)

Save 10% JBC Tools C105-105 nano soldering cartridge tip
C115-105
C115-105 (0.3mm x 4.5mm) JBC Tools Bent Soldering Cartridge
$51.00 $45.90

C105-105 JBC Tip for the NA-1A (0.3mm)

Save 10% JBC - C105-222 Soldering Cartridge
C115-222
C115-222 (1.6mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-213
C115-213
C115-213 (1mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-118
C115-118
C115-118 (0.1mm x 4.5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-112
C115-112
C115-112 (2.5mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-113
C115-113
C115-113 (1mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-214
C115-214
C115-214 (1.8mm x 0.5mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-221
C115-221
C115-221 (1.3mm x 0.3mm) JBC Tools Nano Soldering Cartridge
$51.00 $45.90
Save 10% JBC - C105-101
C115-101

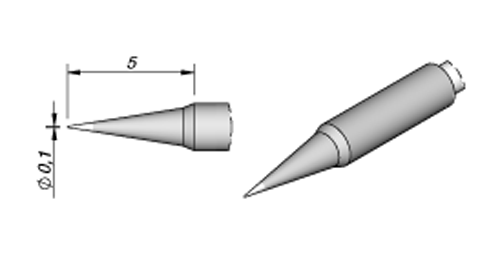

C115-101 (0.1mm x 5.0mm) JBC Tools Conical Soldering Cartridge
