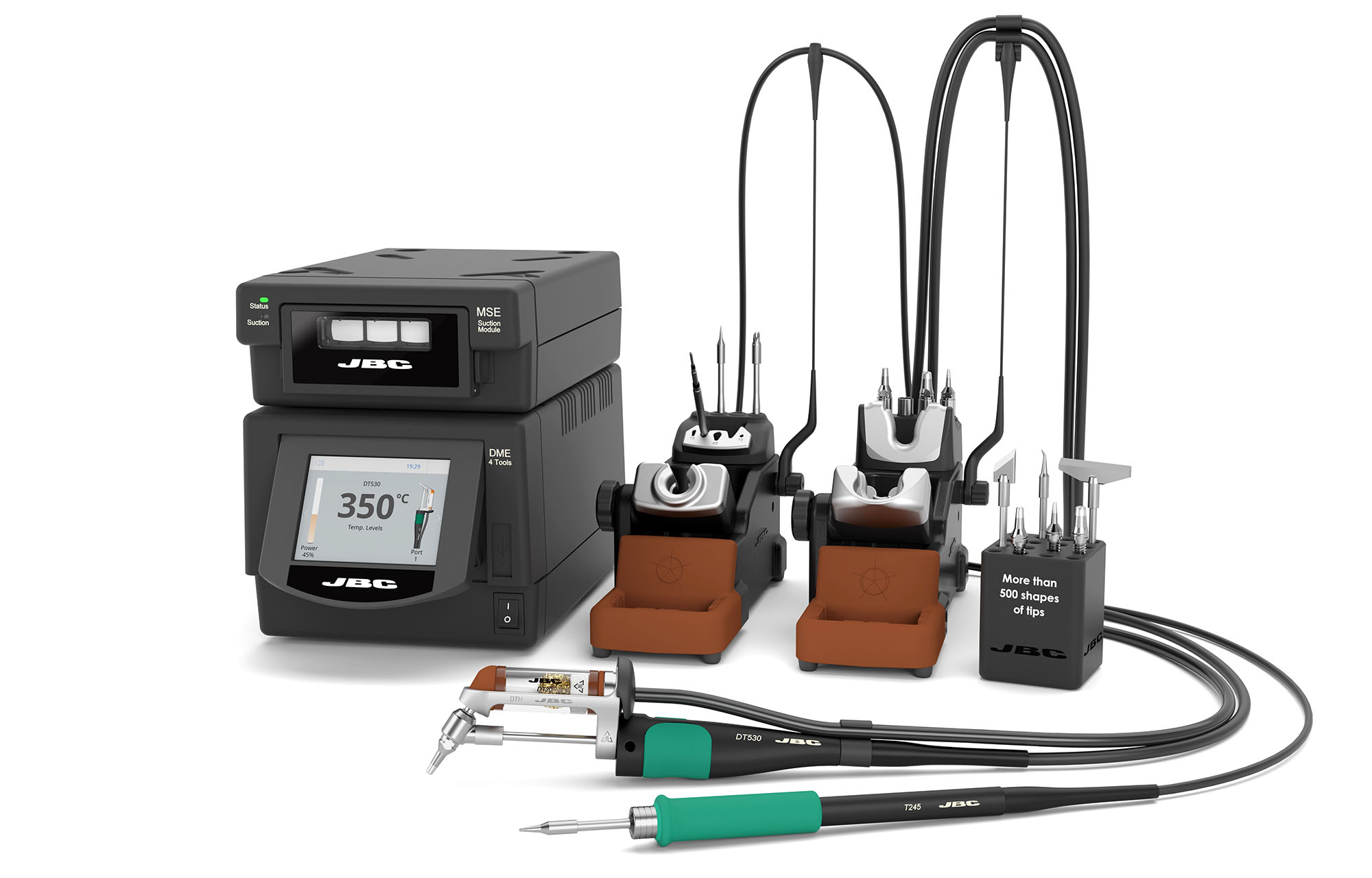

DMSD-1QA Includes:
• DME 4-Tool Control Unit manages up to 4 tools simultaneously and is fully compatible with 10 different JBC Tools, delivering up to 150 W per tool.
• T245 General Purpose Handle and DT530 Angled Desoldering Iron.
• T245 works with C245 Cartridge Range and DT530 with D530 Tip Range.
• MSE-B Electric Desoldering Module provides exceptional suction power, reaching up to 85% vacuum, ensuring precise and efficient solder removal.
SPECIFICATIONS
Peak power:
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF Meets and exceed IPC J-STD-001F
Vacuum
85 % / 640 mmHg / 25.4 inHg
Flow rate
35 SLPM
Temperature accuracy
±3% using reference cartridge
Temp. adjustment
±50ºC / ±90ºF Through station settings menu
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
USB-A Firmware update
Graphics and profiles
Dino-Lite USB microscope connection
Compatible models: AM2011 and AM2111
USB-B
PC communications
FAE Connector
Remote control or FAE Fume Extractor connection
ESD safe
Meet ANSI/ESD S20.20-2021
Weight and dimensions
Control Unit
232 x 148 x 120 mm / 9.71 kg.
9.13 x 5.83 x 4.72 in / 21.41 lb.
