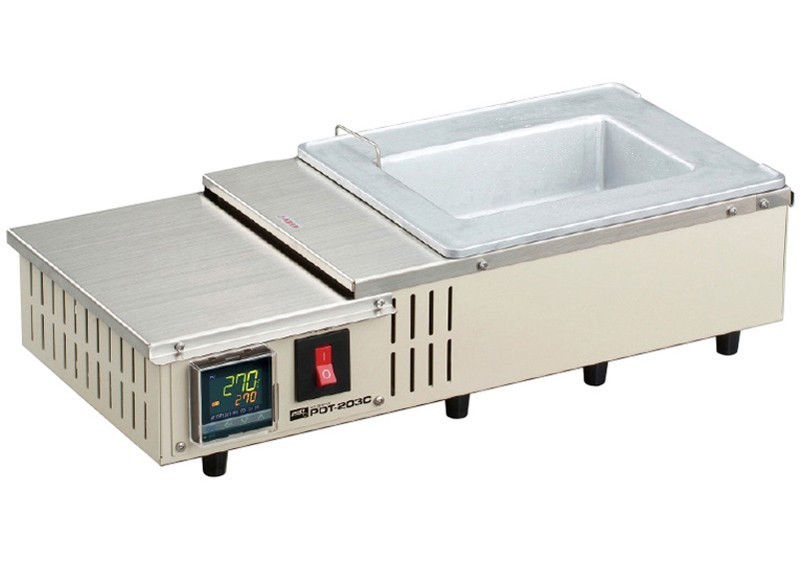

Goot POT-203C Lead Free Solder Pot sold by Howard Electronics
The goot POT-203C is especially suitable for preparatory soldering of relatively large parts, solder-dipping of large terminals, urethane wires, connectors, and big wire leads. The POT-203C is a Economical and erosion-resistant cast-iron bath and is recommended for lead free solder.
- Perfect Temperature:
PID temperature control minimizes deviation of solder or setting temperature.
- Dual Display:
Dual digital temperature display shows set temperature and measured temperature values at the same time.
- Extremely Accurate:
Extremely accurate setting value and measured value at very minimal tolerance as {(display value x 1.25%)+1C}
- Cast-iron Bath:
Recommended for lead free solder.
- Preparatory Soldering: (Patent Pending)
Suitable for preparatory soldering of relatively large parts, solder-dipping of large terminals, urethane wires, connectors, and big lead wires.
- Warning Lamp:
Warning lamp to detect any deviance from set temperature range.
- Separated structure:
Separated structure of solder bath and heater allow simple replacement of each part.
| Model | POT-100C | POT-103C | POT-200C | POT-203C |
|---|---|---|---|---|
| Voltage | 110V,120V, 220V,240V AC 50/60Hz | 110-120V, 220-240V AC 50/60Hz | 110V,120V,220V,240V AC 50/60Hz | 110-120V, 220-240V AC 50/60Hz |
| Power Consumption | 440W | 900W | 650W | 1400W |
| Max. Temp. | 350°C | 450°C | 400°C | 450°C |
| Set Accuracy | ±{(1.25% of display temperature)+1°C} | |||
| Heater | Nichrome Heater | Sheath Heater | Nichrome Heater | Sheath Heater |
| Control System | PID Control | |||
| Power Cord Length | 1.3m | 1.5m | 1.3m | 1.5m |
| Solder Bath Material | SUS316 | Cast Iron | SUS316 | Cast Iron |
| Max. Solder Volume | Approx. 5.5kg | Approx. 3.5kg | Approx. 9.5kg | Approx. 7kg |
| Dimensions | 360(W)×124(H)×220(D)mm | 450(W)×124(H)×220(D)mm | ||
| Solder Bath Dimensions |
91(W)× 60(H)× 135(D)mm |
82(W)× 53(H)× 110(D)mm |
180(W)× 60(H)× 130(D)mm |
173(W)× 53(H)× 108(D)mm |
| Weight | 5kg | 8kg | 7kg | 11kg |
Purchase a Goot POT-203C Lead Free Solder Pot Today.
