POT-200C Goot Large Solder Pot

Goot
List price: $1,200.00
$1,095.00
You save: $105.00 (9%)
POT-200C
+ −
Add to wish list Add to comparison list

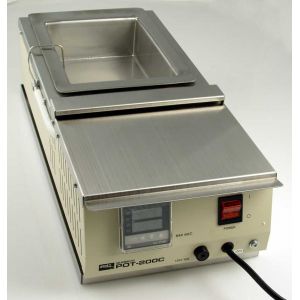

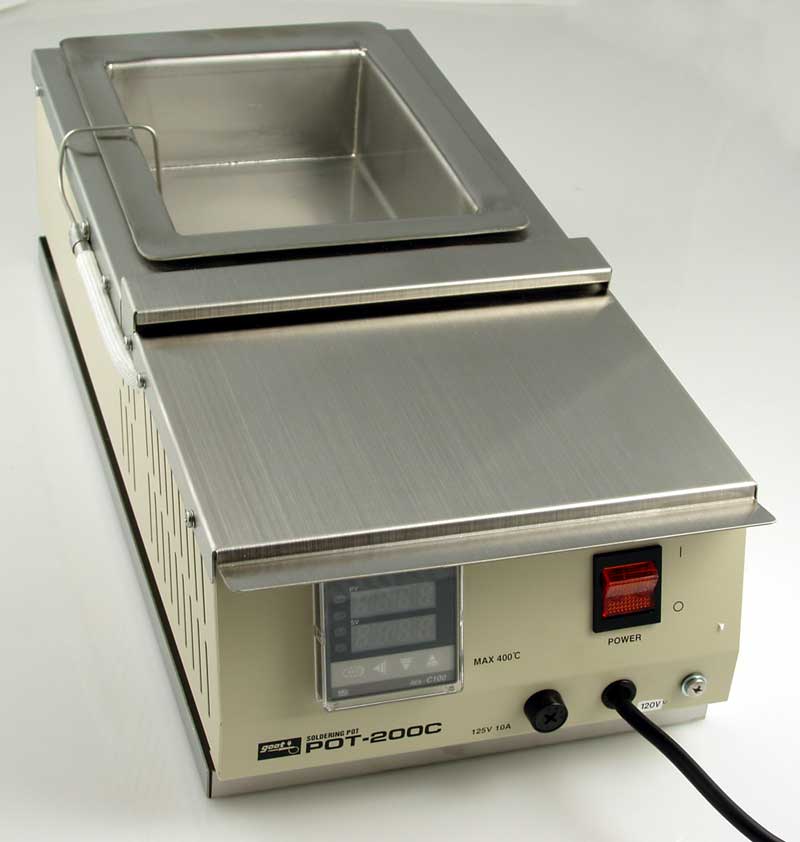

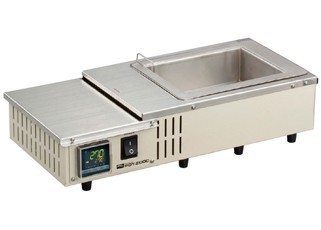

Goot POT-200C Solder Pot sold by Howard Electronics

The goot POT-200C is especially suitable for preparatory soldering of relatively large parts, solder-dipping of large terminals, urethane wires, connectors, and big wire leads. The POT-200C is a stainless steel solder bath and is not recommended for lead free solder.

  • Perfect Temperature:

PID temperature control minimizes deviation of solder or setting temperature.

  • Dual Display:

Dual digital temperature display shows set temperature and measured temperature values at the same time.

  • Extremely Accurate:

Extremely accurate setting value and measured value at very minimal tolerance as {(display value x 1.25%)+1C}

  • Stainless Steel Solder Bath:

Not recommended for lead free solder. Can be fitted with specially processed lead-free applicable solder bath - part number POT-200C-S17.

  • Preparatory Soldering: (Patent Pending)

Suitable for preparatory soldering of relatively large parts, solder-dipping of large terminals, urethane wires, connectors, and big lead wires.

  • Warning Lamp:

Warning lamp to detect any deviance from set temperature range.

  • Separated structure:

Separated structure of solder bath and heater allow simple replacement of each part.



Model POT-100C POT-103C POT-200C POT-203C
Voltage 110V,120V, 220V,240V AC 50/60Hz 110-120V, 220-240V AC 50/60Hz 110V,120V,220V,240V AC 50/60Hz 110-120V, 220-240V AC 50/60Hz
Power Consumption 440W 900W 650W 1400W
Max. Temp. 350°C 450°C 400°C 450°C
Set Accuracy ±{(1.25% of display temperature)+1°C}
Heater Nichrome Heater Sheath Heater Nichrome Heater Sheath Heater
Control System PID Control
Power Cord Length 1.3m 1.5m 1.3m 1.5m
Solder Bath Material SUS316 Cast Iron SUS316 Cast Iron
Max. Solder Volume Approx. 5.5kg Approx. 3.5kg Approx. 9.5kg Approx. 7kg
Dimensions 360(W)×124(H)×220(D)mm 450(W)×124(H)×220(D)mm
Solder Bath Dimensions 91(W)×
60(H)×
135(D)mm 		82(W)×
53(H)×
110(D)mm 		180(W)×
60(H)×
130(D)mm 		173(W)×
53(H)×
108(D)mm
Weight 5kg 8kg 7kg 11kg


Purchase a Goot POT-200C Solder Pot Today.

Vendors :
Goot
Frequency:
50/60Hz
Output:
720W
Solder Bath Dimensions:
130x180x60mm
Weight:
Approx. 5.5kg
Max. Solder Volume:
Approx. 9.5kg
Solder Bath Material:
Stainless Steel
