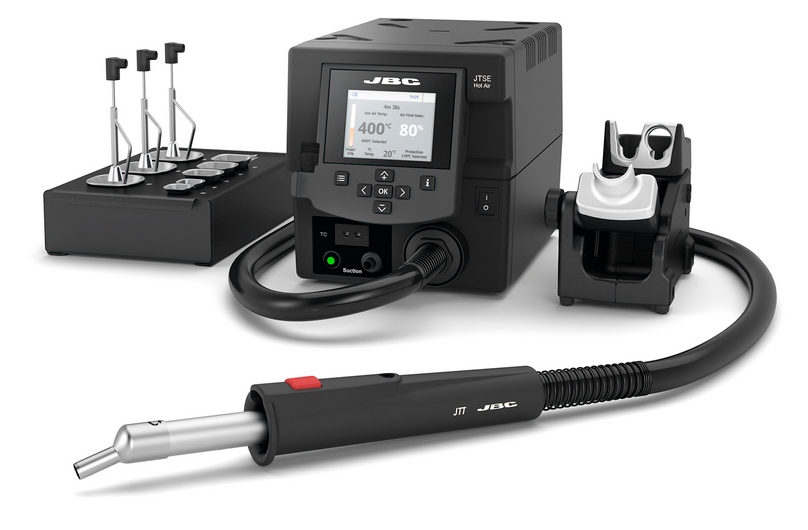

JBC Tools JTSE-2B Power Hot Station(230V)

The JTSE is a high powered hot air Station capable of reworking all types of SMDs.

The combination of the exclusive JBC hot air system with protectors, tripods and extractors ensures desoldering components easily and safety.

Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.

As all the JBC Stations, the JTSE has a menu with more than 10 parameters to customise the control unit.

PRODUCT COMPOSITION

1 Instruction Manual

1 JTSE Power Hot Air Control Unit

1 JTT Heater Hose Set

1 JTS Stand for JTT

1 ESHT Magazine with Protectors & Extractors

1 E2052 Extractor 52 (20 x 20 mm)

1 E2064 Extractor 64 (20 x 26 mm)

1 E2184 Extractor 80 (24 x 24 mm)

1 P2220 Protector 32 (10 x 10 mm)

1 P2235 Protector 24 (12 x 17 mm)

1 P4000 Protector 44 (12.5 x 12.5 mm)

1 P2230 Protector 48 (15 x 15 mm)

1 P4010 Protector 60 (17 x 17 mm)

1 T2050 Tripod Ø 39 mm

1 T2250 Tripod Ø 85 mm

1 CU110 Cups for Extractors & Tripods

1 A2330 Suction Tube for Protectors & Extractors

1 JN2015 Bent Nozzle Ø4 - 18º for JTT

1 JN2015 Bent Nozzle Ø6 - 18º for JTT

1 JN2020 Straight Nozzle Ø8 for JTT

1 PH218 Thermocouple Type K

1 PH217 Kapton Tape

SPECIFICATIONS

Peak power
700W

Selectable temperature
150 to 450 °C / 300 to 840 °F

Air flow regulation
5 to 50 SLPM

Vacuum
30% / 228 mmHg / 9 inHg

Profiles
25 (up to 10 steps for each), 1 preset profile

Type K TC connector
1 for Control & Protection

ESD safe
Meet ANSI / ESD S20.20-2021

Equipotential bonding
Connection to EPA

USB-A
Firmware update

Graphics and profiles

USB-B
PC communications

RJ12 Connector
Remote control or FAE Fume Extractor connection

Pedal connector
Tool control
