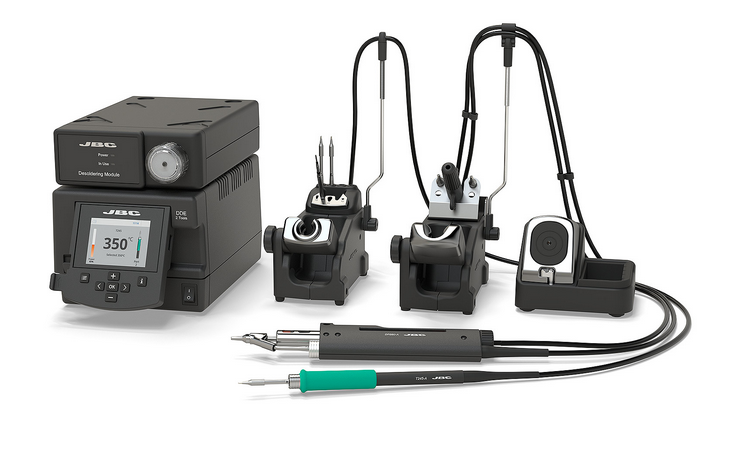

The DDSE / DDVE station is a complete solution to rework circuits and it comes with the T245 General Purpose Handle and the DR560 Desoldering Iron.
The DDE Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.
The Desoldering Module generates the vacuum needed to remove the molten solder from plated through hole and surface mount pads with the DR560. There are two models, the DDSE which works with an electric pump and the DDVE which works with compressed air supply.
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend life of tips.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
PRODUCT COMPOSITION:
1 Instruction Manual
1 DDE 2-Tool Control Unit
1 MSE Electric Desoldering Module for DDE & DME
1 T245 General Purpose Handle (cartridge not included)
1 DR560 Desoldering Iron (C560003 already inserted)
1 ADS Stand for T210 & T245
1 DRS Stand for DR560
1 SCH for Cartridge & Tips Holder
SPECIFICATIONS:
Nominal power
370W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
Vacuum
85 % / 640 mmHg / 25.4 inHg
Flow rate
35 SLPM
Temperature accuracy
±3% (using reference cartridge)
Temp. adjustment
±50ºC / ±90ºF Through station menu setting
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
USB-A
Firmware update
Graphics and profiles
USB-B
PC communications
FAE / Robot connector
Remote control or FAE Fume Extractor connection
ESD safe
Meet ANSI/ESD S20.20-2021
