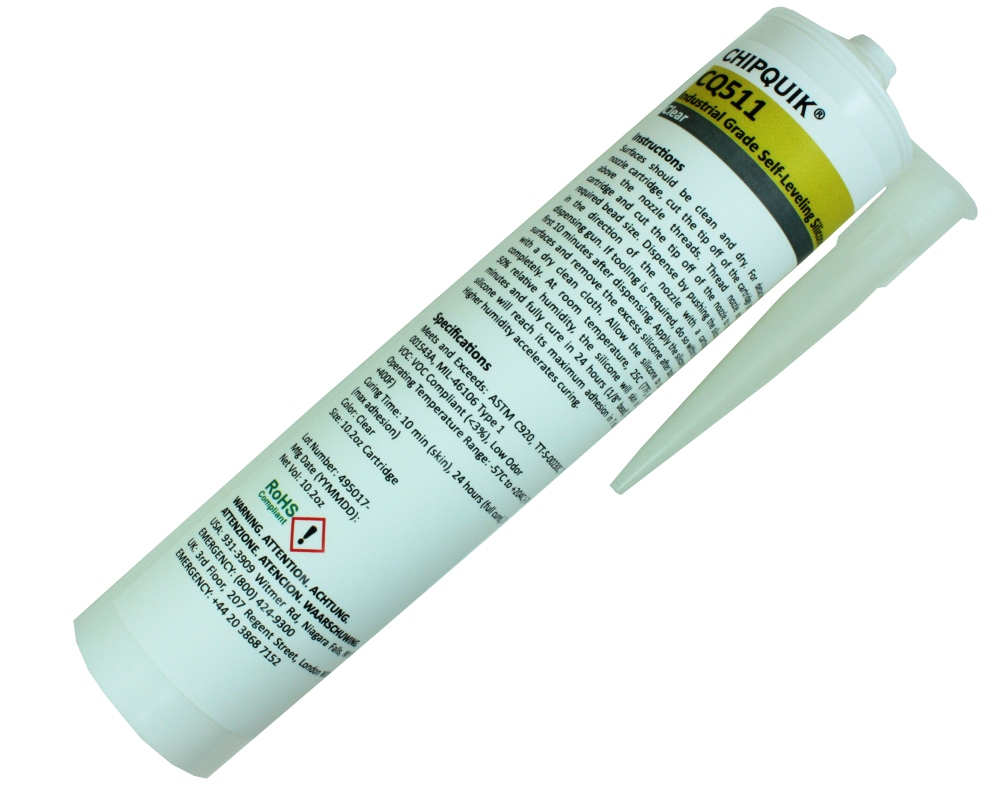

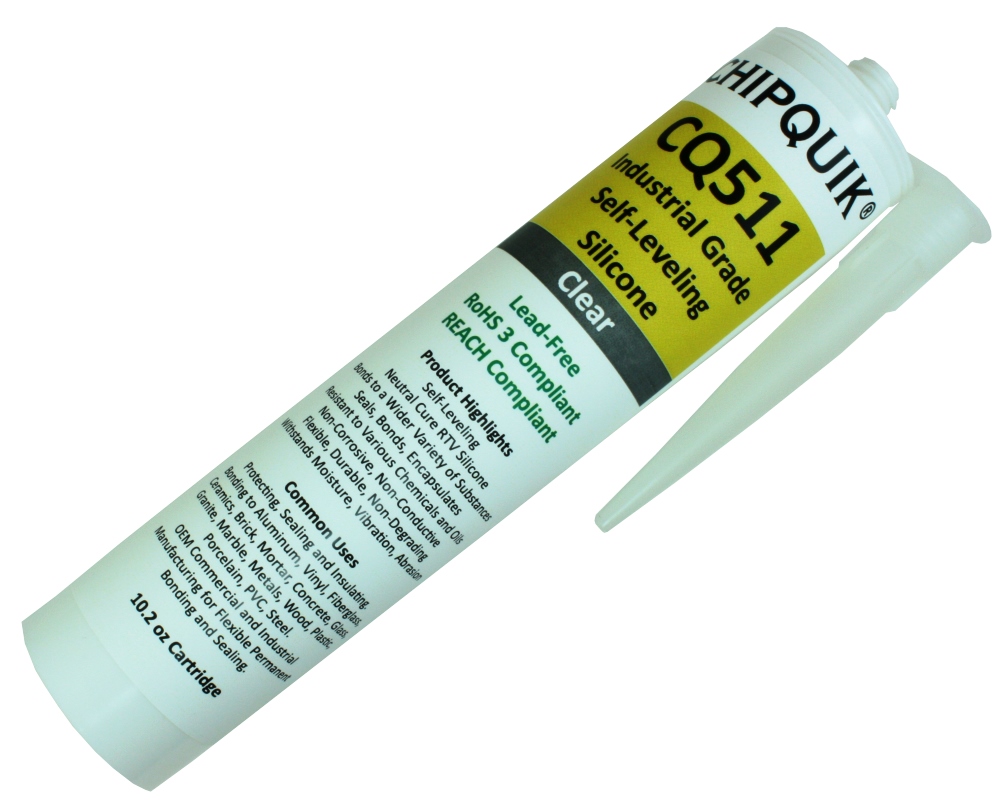

ChipQuik CQ511 Industrial Grade Self-Leveling Silicone (Clear) 10.2oz Cartridge

$67.95
CQ511
+

Self-Leveling

Neutral Cure RTV Silicone

Bonds to a Wider Variety of Substances

Seals, Bonds, Encapsulates

Resistant to Various Chemicals and Oils

Non-Corrosive, Non-Conductive

Flexible, Durable, Non-Degrading

Withstands Moisture, Vibration, Abrasion

Common Uses

Protecting, Sealing and Insulating.

Bonding to Aluminum, Vinyl, Fiberglass, Ceramics, Brick, Mortar, Concrete, Glass, Granite, Marble, Metals, Wood, Plastic, Porcelain, PVC, Steel.

OEM Commercial and Industrial Manufacturing for Flexible Permanent Bonding and Sealing.

Instructions

Surfaces should be clean and dry. For detached nozzle cartridge, cut the tip off of the cartridge just above the nozzle threads. Thread nozzle onto cartridge and cut the tip off of the nozzle to the required bead size. Dispense by pushing the silicone in the direction of the nozzle with a cartridge dispensing gun. If tooling is required, do so within the first 10 minutes after dispensing. Apply the silicone to surfaces and remove the excess silicone after tooling with a dry clean cloth. Allow the silicone to cure completely. At room temperature, 25C (77F), and 50% relative humidity, the silicone will skin in 10 minutes and fully cure in 24 hours (1/8" bead). The silicone will reach its maximum adhesion in 7 days. Higher humidity accelerates curing.

Accelerating Curing Time

High humidity in combination with slightly elevated temperature will speed curing. Recommended Fast Cure Starting Point: Humidity of 95 to 100%, with temperature of 50 to 65C.

Specifications

Meets and Exceeds: ASTM C920, TT-S-00230C, TT-S-001543A, MIL-46106 Type 1

VOC: VOC Compliant (<3%), Low Odor

Operating Temperature Range: -57C to +204C (-70F to +400F)

Curing Time: 10 min (skin), 24 hours (full cure), 7 days (max adhesion)

Shore A Hardness: 30

Tensile Strength: 250psi

Tear Strength: 30psi

Elongation: 400%

Dielectric Strength: 460 V/mil (18 kV/mm)

Viscosity: 10.9 x 10^3 mPa.s (Malcom @ 10 RPM/25C)

Color: Clear

Size: 10.2oz Cartridge

Storage and Handling

Store refrigerated or at room temperature 3-25C (37-77F).

Shelf Life

>36 months
