ChipQuik Proto-Advantage Series DIP300-SOIC-20W DIP-20 (0.3" width, 0.1" pitch) to SOIC-20 Wide (1.27mm pitch, 300 mil body) Adapter

$9.39
DIP300-SOIC-20W
+ −
Add to wish list Add to comparison list

This adapter allows a SOIC-20 Wide (300 mil body, 0.050"/1.27mm pitch) footprint on a motherboard to be soldered to and wired out to DIP-20 (fits 0.3" row width) plated through holes above, for easy probing and debugging access, or for replacement with a DIP IC.

SPECIFICATIONS:

PCB dimensions: 0.4 x 1.0 x 0.063 inches.

PCB construction: FR-4 UL94V-0.

PCB operating temperature range: -40C to +130C.

PCB reflow maximum temperature: +260C.

PCB Assembly standard: IPC-A-610 Class II.

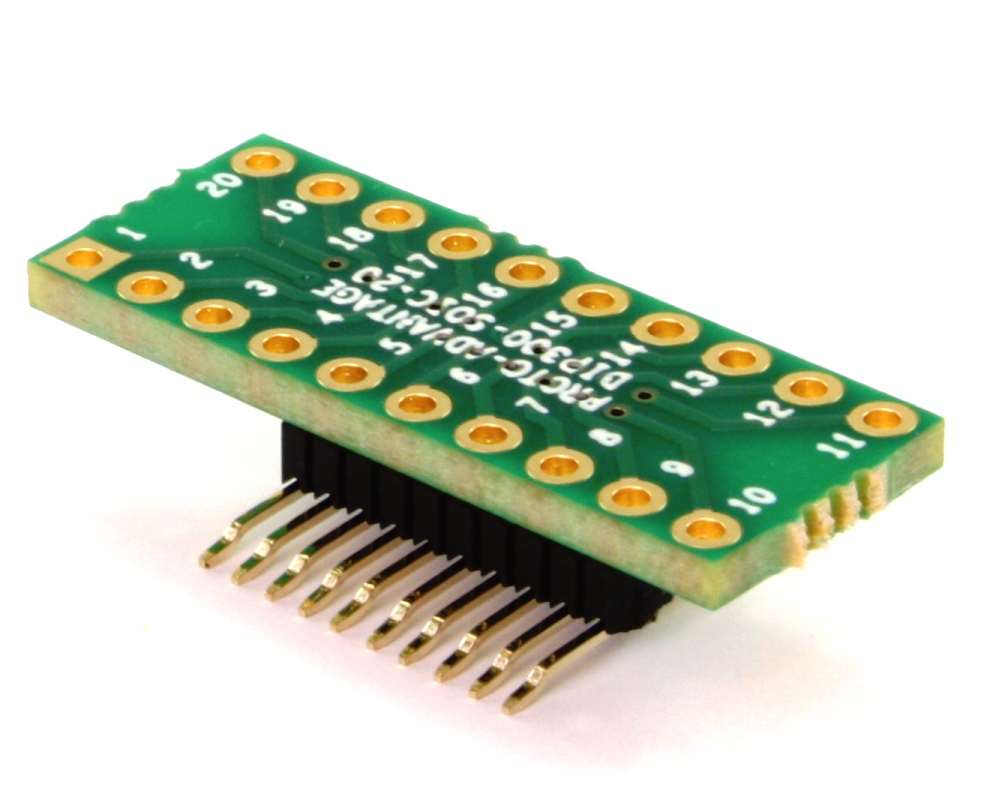

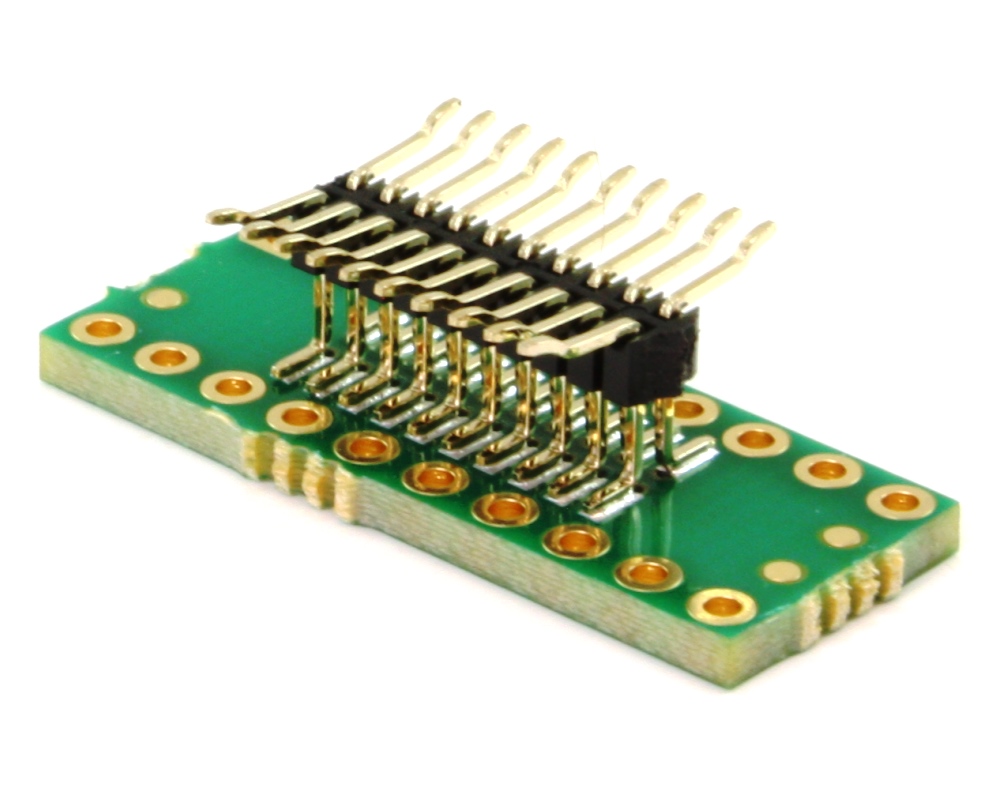

Top side of board fits DIP-20 IC, 0.3" row width (DIP300). Bottom side of PCB has SMD pads for the SMD-SMD header that converts to a SOIC-20W footprint.
