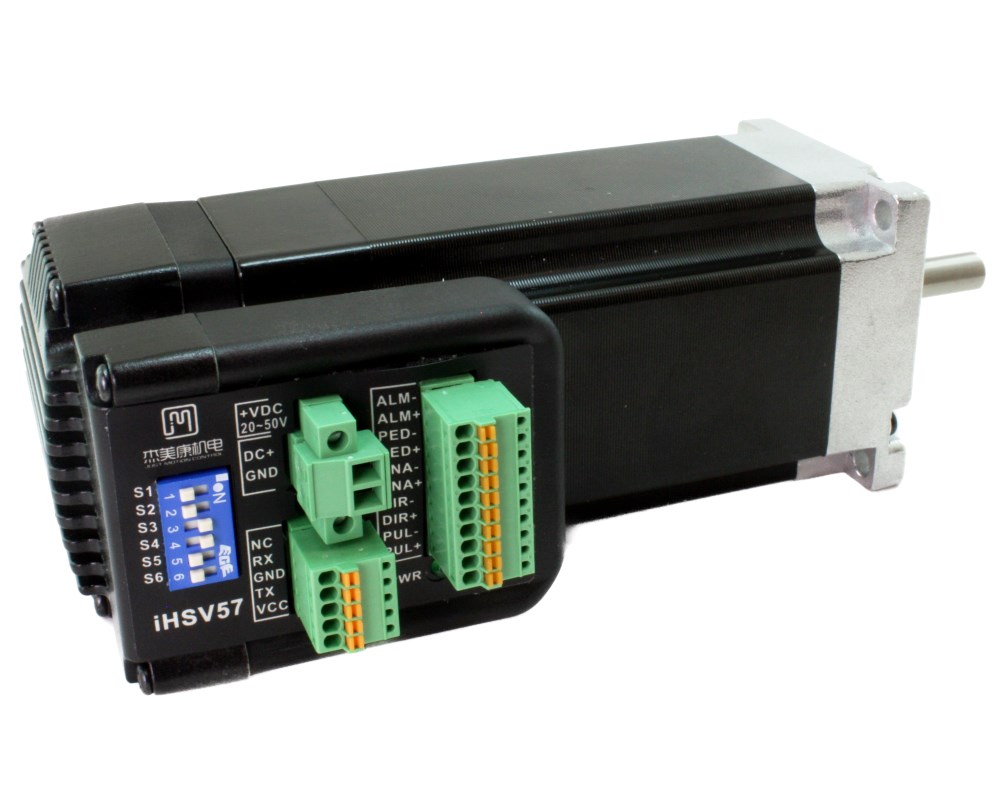

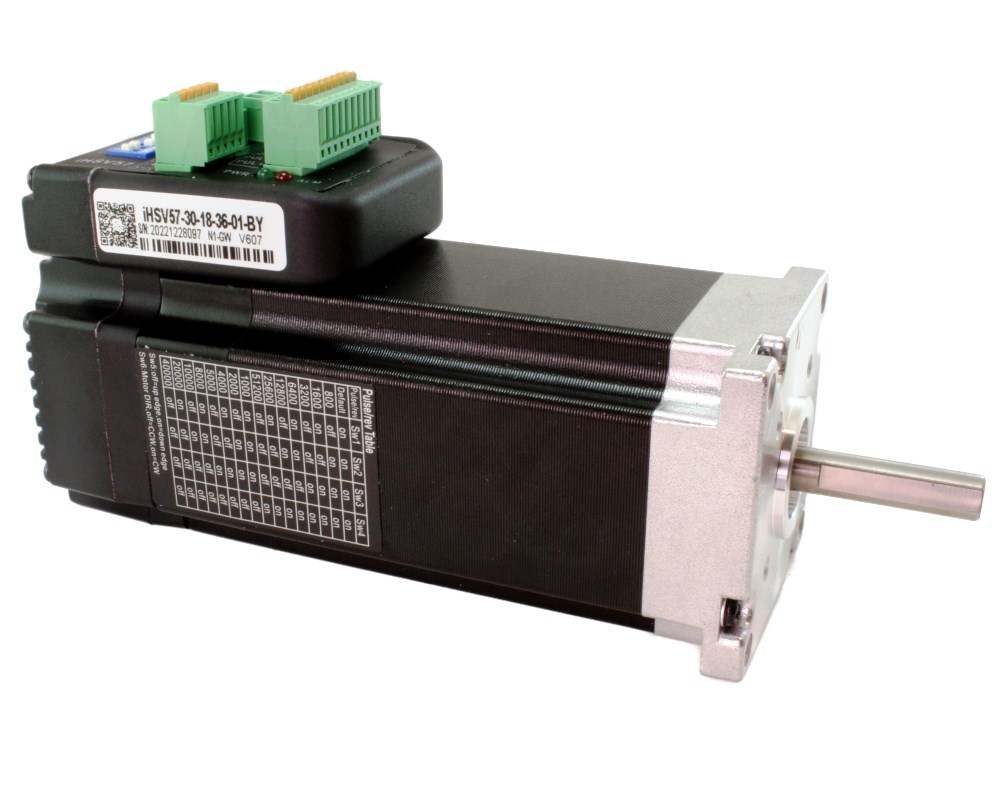

ChipQuik CQ-iHSV57-30-18-36-01-BY 36VDC 180W Integrated Servo Drive Motor

$271.00
CQ-iHSV57-30-18-36-01-BY
+

Integrated Servo Drive Motor

Required Power Supply Voltage: 36VDC

Motor Rated Power: 180W

Motor Rated Current: 7.5A

Motor No-Load Current: 0.65A

Motor Rated Speed: 3000 rpm

Motor No-Load Speed: 4200 rpm

Holding Torque: 0.6Nm

Motor Base: 57mm

Motor Base Bolt Hole Pattern: 4 holes, square pattern, 47.14mm center-to-center

Motor Base Bolt Hole Size: Smooth, 5mm diameter

Motor Length: 150mm

Motor Shaft Length: 33mm

Motor Shaft Diameter: 8mm
