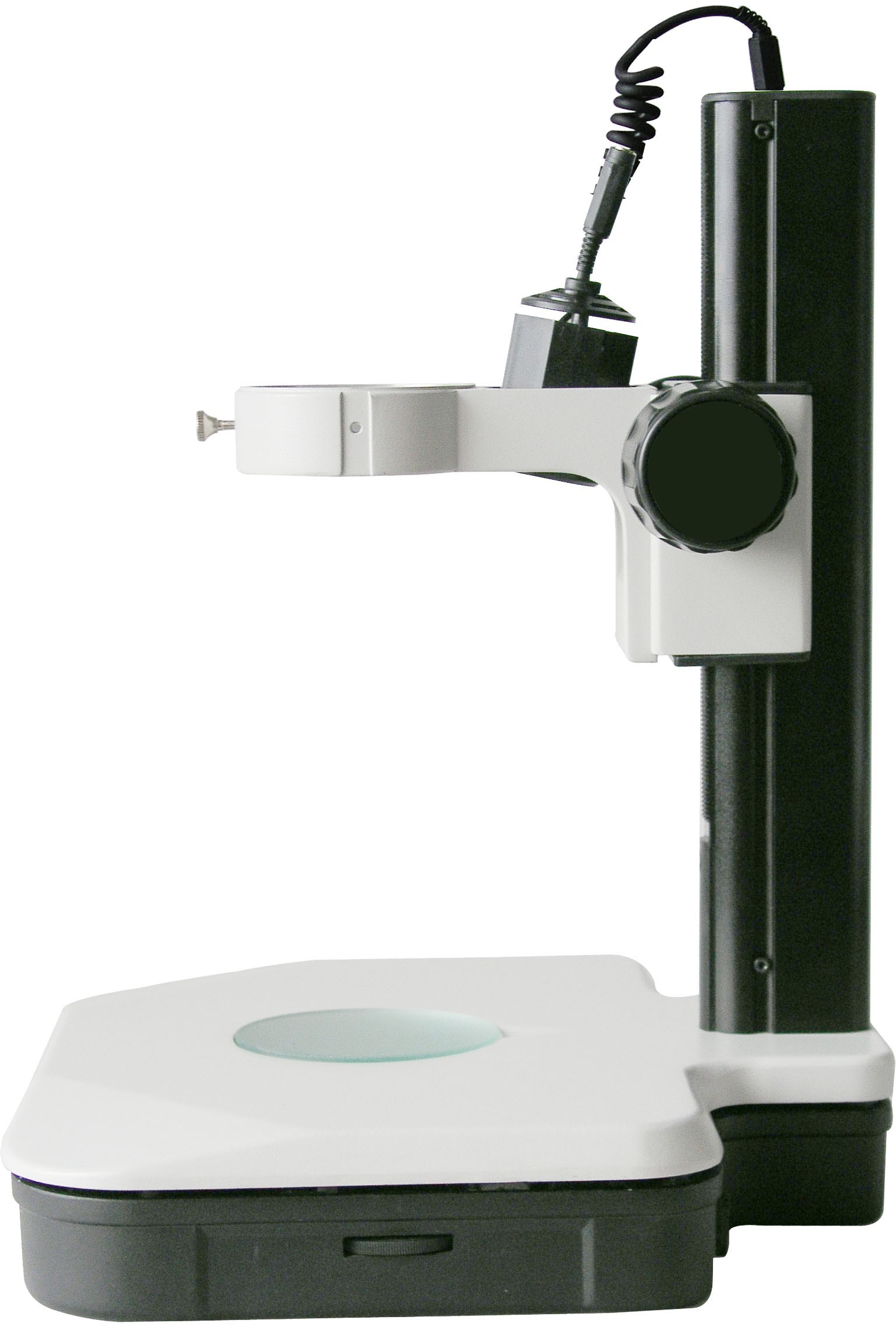

HEIScope HEI-TS-HF ST2031202 76mm HF Dual Illuminated Track Stand. The HEIScope HEI-TS-HF ST2031202 has a Top Halogen Spot Light and Bottom Fluorescent with 7.5" of Vertical Travel.
HEI-TS-HF ST2031202 HEIScope 76mm Dual Illuminated Track Stand
HEI-TS-HF ST2031202 HEIScope 76mm Track Stand scope holder, 12v 15w halogen bulb for top lighting, 9w 2u fluorescent lamp for bottom lighting. Ac 85-265v 5060hz. Travel distance 250mm, vertical length 325mm. The base size is 320×305×60mm, with a 95×6mm glass plate, applicable to sz and fs series microscope.
Warranty: 1 Year
HEI-TS-HF ST02031202 HeiScope 76mm Dual Illuminated Track Stand Specifications
| Track Stand | Stand Type | Track Stand | |
| Holder Adapter Type | 76mm Scope Holder | ||
| Track Length | 325mm | ||
| Base Type | Illumination Base | ||
| Base Shape | Rectangle | ||
| Stand Throat Depth | 121mm | ||
| Base Dimensions | 320x305x60mm | ||
| Focus Mode | Manual | ||
| Focus Distance | 200mm | ||
| Coarse Focus Distance per Rotation | 23mm | ||
| Focusing Knob Tightness Adjustable | Tightness Adjustable | ||
| Illumination Type | HF Dual Illuminated Light | ||
| Top Illumination | Oblique Top Spot Light | ||
| Top Illumination Type | Halogen Light | ||
| Bottom Illumination Type | Fluorescent Light | ||
| Input Voltage | AC 90~265V 50/60Hz | ||
| Output Voltage | DC 12V | ||
| Output Power | 24W | ||
| Power Cord Connector Type | USA 3 Pins | ||
| Power Cable Length | 1.8m | ||
| Surface Treatment | Spray Paint | ||
| Material | Metal | ||
| Color | White | ||
| Net Weight | 5.37kg (11.84lbs) | ||
| Dimensions | 320x305x385mm (12.598x12.008x15.157″) |
| Microscope Plate | Black White Plate | Plate Type | Black White Plate |
| Plate Material | Plastic | ||
| Plate Size | Φ95x5mm | ||
| Color | Black,White | ||
| Net Weight | 0.04kg (0.09lbs) | ||
| Matte Finish Glass Plate | Plate Type | Matte Finish Glass Plate | |
| Plate Material | Matte Finish Glass | ||
| Plate Size | 95x5mm | ||
| Net Weight | 0.09kg (0.20lbs) |
| Aperture Diaphragm | Transmitted Illumination Iris | Aperture Diaphragm Mounting Position | Vertical Illuminator |
| Aperture Diaphragm Outer Dia. | Φ91mm | ||
| Surface Treatment | Electroplating Black | ||
| Material | Metal | ||
| Color | Black | ||
| Net Weight | 0.03kg (0.07lbs) | ||
| Applied To | SA0216 Series Illumination Bas |
Purchase a HEIScope HEI-TS-HF ST02031202 76mm Dual Illuminated Track Stand sold by Howard Electronics Today!
