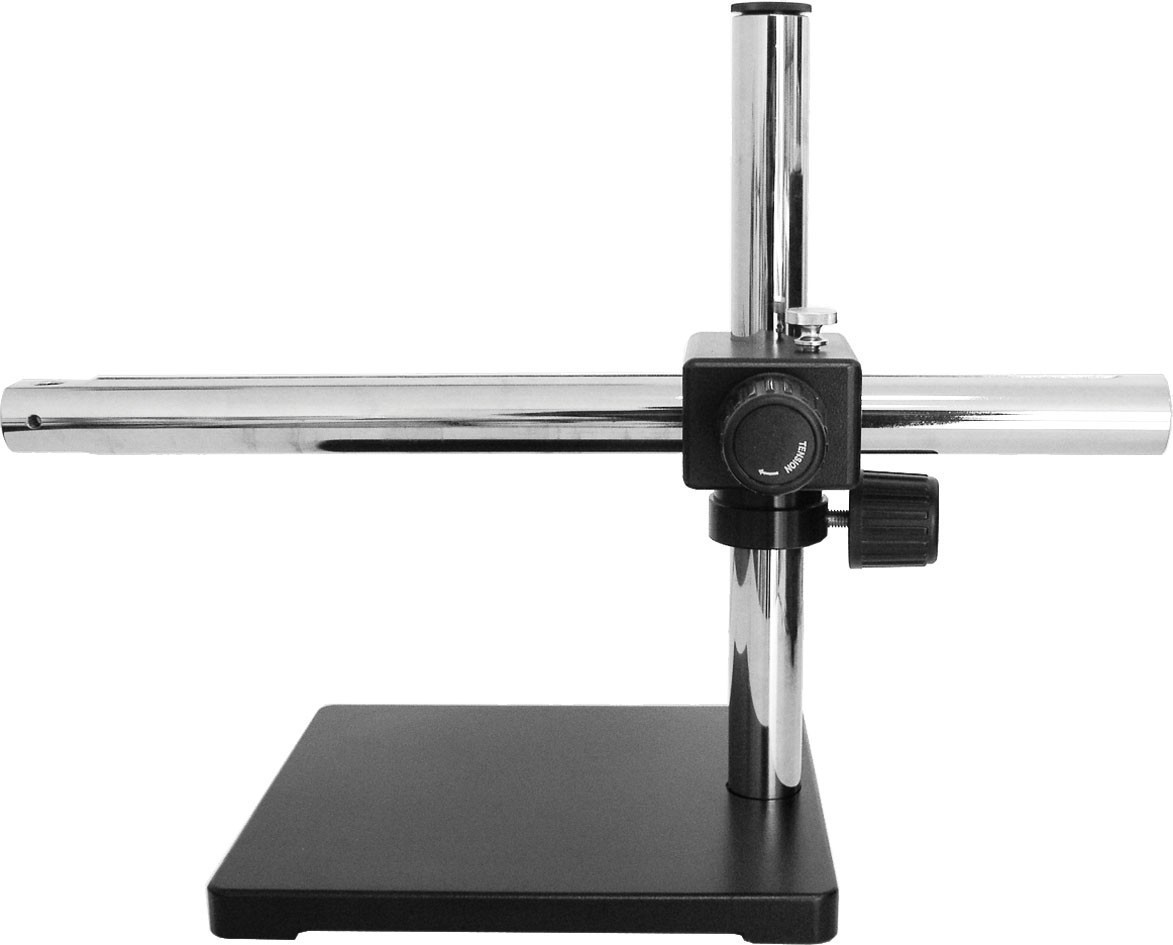

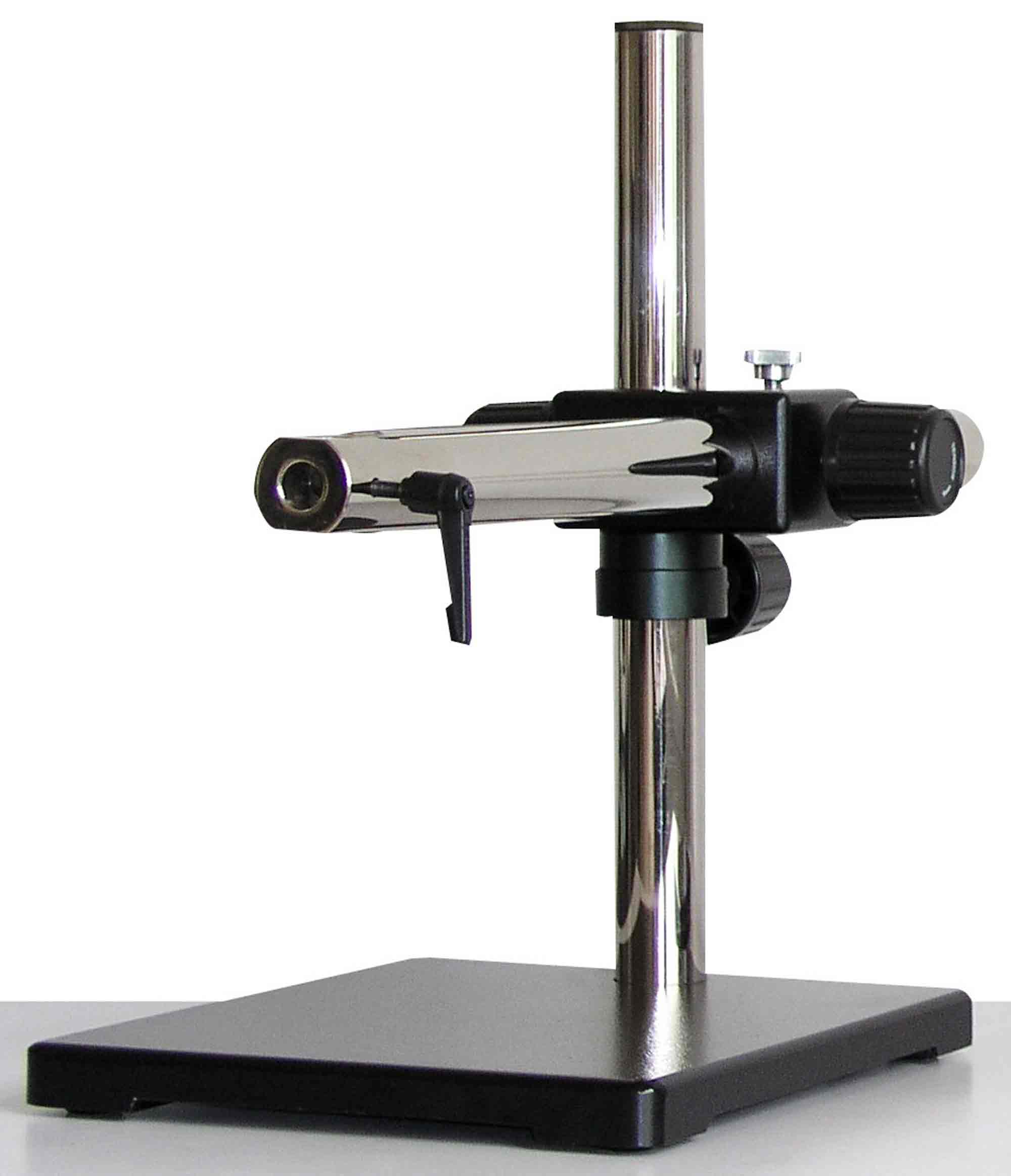

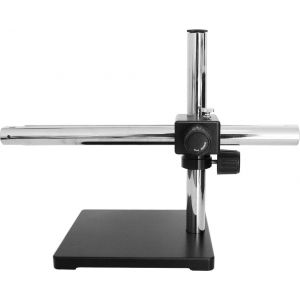

View Solutions ST02051101 Standard Boom Stand
View Solutions HEI-BS-SB ST02051101 Standard Microscope Boom Stand have solid metal vertical and horizontal post with a locking ring on the vertical post for stopping. The diameter of the mounting hole on the front or the horizontal bar is 5/8".
View Solutions ST02051101 Standard Boom Stand Specification
| Stand Type | Boom Stand |
| Vertical Post Height | 384mm |
| Maximum Vertical Post Extended Length | 254mm |
| Vertical Post Dia. | Φ37.2mm |
| Cross Adapter Type | Cross Hole Adapter |
| Horizontal Arm Type | Horizontal Post |
| Horizontal Arm Length | 544mm |
| Horizontal Dia. | Φ37.2mm |
| Mounting Hole on the End of Horizontal Arm | 5/8″ End Adapter |
| Horizontal Rotation Angle | 360° Rotatable |
| Horizontal Arm Travel Distance on Z-Axis | 266mm |
| Horizontal Arm Stretch Range | 480mm |
| Horizontal Arm Maximum Load | 9.50kg (20.94lbs) |
| Horizontal Arm Travel Mode on Horizontal Direction | Manual |
| Horizontal Arm Travel Mode on Z Direction | Manual |
| Base Type | Heavy Duty Base |
| Base Shape | Rectangle |
| Base Dimensions | 285x260x15mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 18.14kg (39.99lbs) |
| Dimensions | 285x260x600mm (11.220x10.236x23.622″) |
Purchase a View Solutions ST02051101 Standard Boom Stand sold by Howard Electronics Today!
