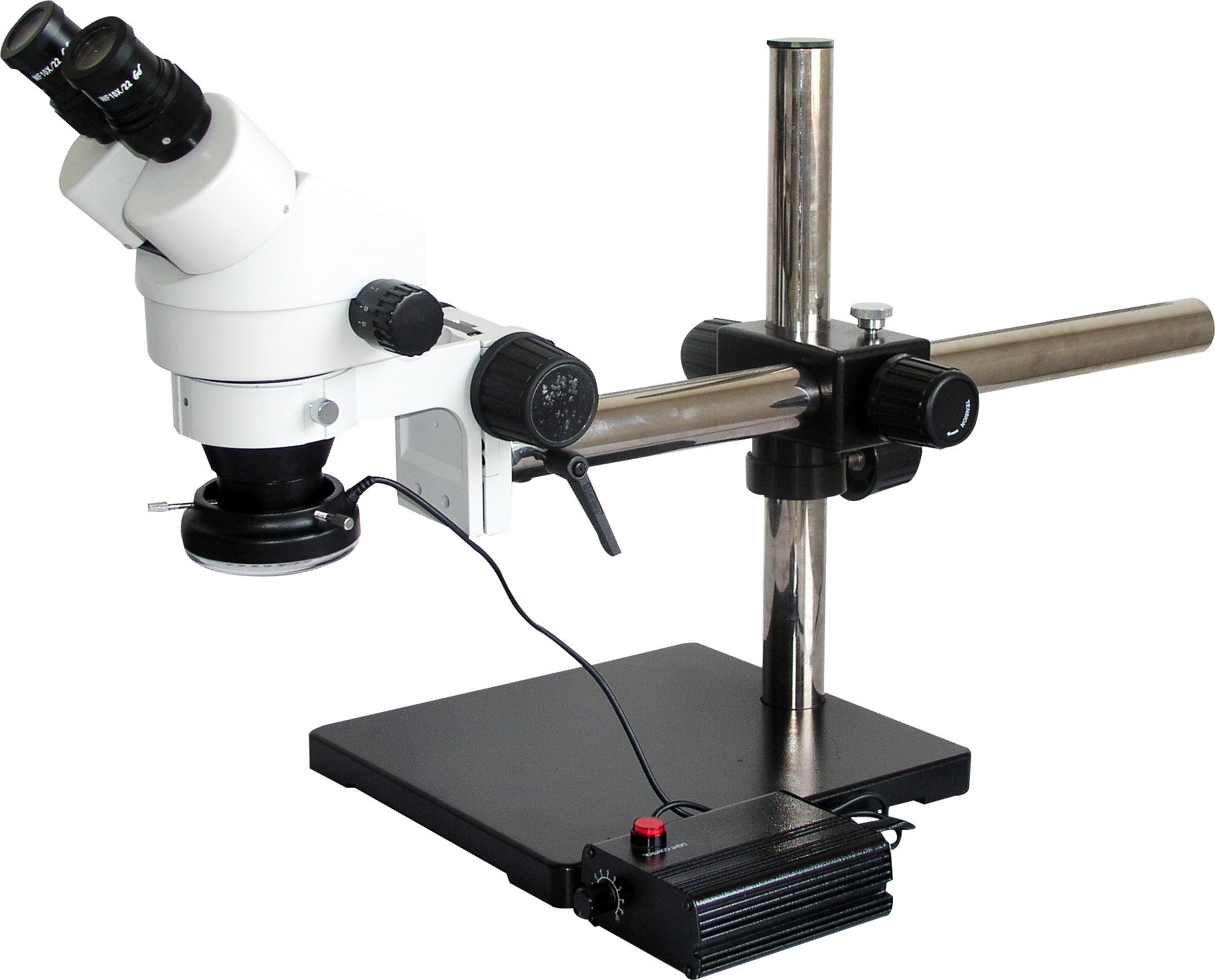

HEI-MP4-LED HEIScope Stereo Zoom Binocular Microscope Package

HEIScope
List price: $1,308.59
$1,057.00
You save: $251.59 (19%)
HEI-MP4-LED
+ −
Add to wish list Add to comparison list

HEI Stereo Zoom Binocular, 10x eyepieces, eye guards, boom stand with 76mm e-arm, ring adapter, 0.5x auxiliary lens, adjustable LED ring light and ESD safe microscope cover. Zoom Range of 3.4x - 22.5x with Working Distance of 7".

  • HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • Standard boom stand with 76mm e-arm (11.2x10.2x0.7") 40.0 lbs
  • Adjustable LED ring light (60 LED's)
  • Dual diopter adjustments Focusable eyepieces
  • Can be used for teaching, scientific research, electronic testing and more.

Total magnification = Zoom range x eyepieces x auxiliary lens

In this Package:
SZ05011121 Stereo Zoom Binocular Microscope Body
ST02051101 Standard Boom Stand
SA02021102 76mm E-Arm
ML19241321 LED Light Guide
SZ19024211 0.5x Auxiliary Lens


Optical Specifications:

Auxiliary Lens0.3X0.4X

0.5X

0.75X1X1.5X2.0X
Working Distance (mm)287mm

217mm

177mm

117mm

100mm

47mm

26mm

10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

13.4x-90.0x

FOV 109.5-16.382.1-12.265.7-9.8

43.8-6.5

32.8-4.9

21.9-3.3

16.4-2.4

15X Mag.

3.0x-20.3x

4.0x-27.0x

5.0x-33.8x

7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x
FOV 79.6-11.9

59.7-8.9

47.8-7.1

31.8-4.7

23.9-3.6

15.9-2.4

11.9-1.8

20X Mag.

4.0x-27.0x

5.4x-36.0x

6.7x-45.0x

10.1x-67.5x

13.4x-90.0x

20.1x-135.0x

26.8x-180x

FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x
FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x
FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5
