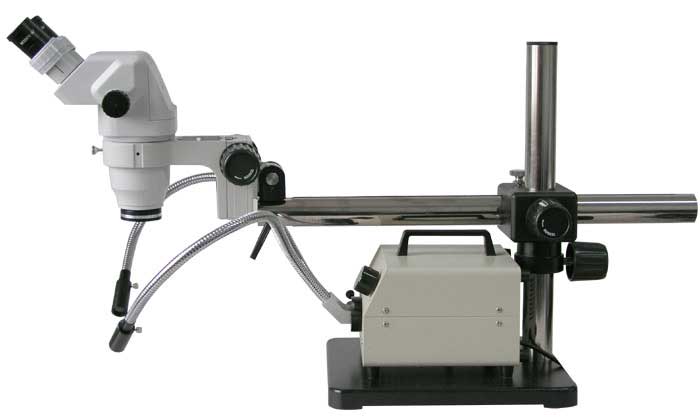

HEI-MP4-DP HEIScope Stereo Zoom Binocular Microscope Package
HEI-MP4-DP includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, boom stand with 76mm e-arm, ring adapter, 0.5x auxiliary lens, fiber optic illuminator, dual pipe light guide and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7"
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
- Standard boom stand with 76mm e-arm (11.2x10.2x0.7") 40.0 lbs
- 150 Watt Fiber Optic Illuminator with Dual Pipe Light
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more.
- 5 year warranty!
|
||||||||||||||
Total magnification = auxiliary lens x objective x eyepieces
Optical Specifications:
| Objective | 0.3X | 0.4X |
0.5X |
0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm |
217mm |
177mm |
117mm |
100mm |
47mm |
26mm |
|
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x |
13.4x-90.0x |
|
|
FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
| 15X | Mag. |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
|
|
FOV | 79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
| 20X | Mag. |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
|
|
FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
|
|
FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
|
|
FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 |
