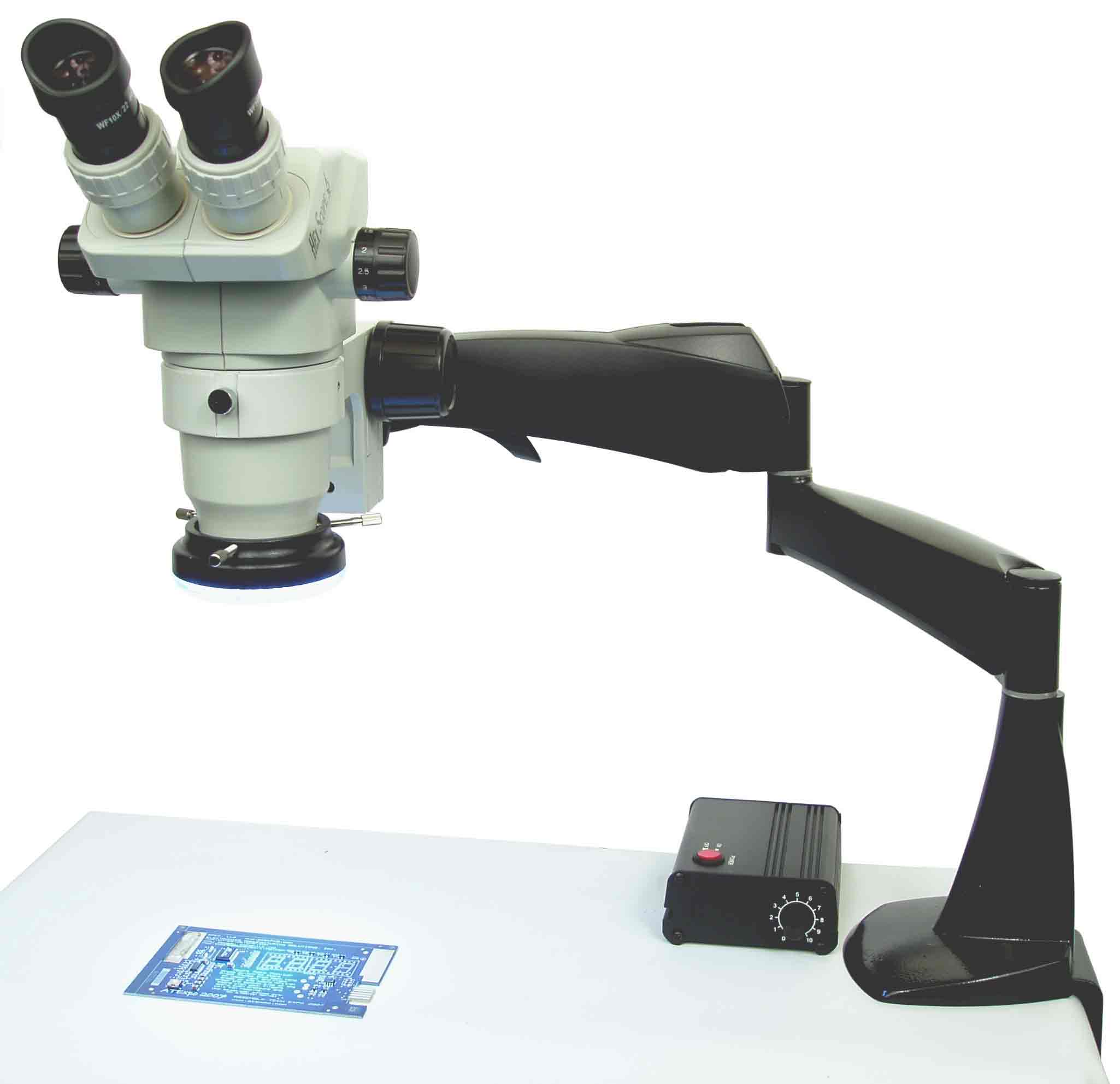

HEI Stereo Zoom Binocular, 10x eyepieces, eye guards, hydraulic articulating arm with 76mm focus rack, ring adapter, 0.5x auxiliary lens, adjustable LED ring light, and ESD safe microscope cover. Zoom Range of 3.4x - 22.5x with Working Distance of 7"
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
- Pneumatic Articulating Arm Stand with C-Clamp Base and 76mm E-Arm
- Adjustable LED Ring Light 64 LED Bulbs Lamp Life: Minimum 10,000 hr
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more.
- 5 year warranty!
|
||||||||||
Total magnification = auxiliary lens x objective x eyepieces
Optical Specifications:
| Objective | 0.3X | 0.4X |
0.5X |
0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm |
217mm |
177mm |
117mm |
100mm |
47mm |
26mm |
|
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x |
13.4x-90.0x |
|
|
FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
| 15X | Mag. |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
|
|
FOV | 79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
| 20X | Mag. |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
|
|
FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
|
|
FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
|
|
FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 |
