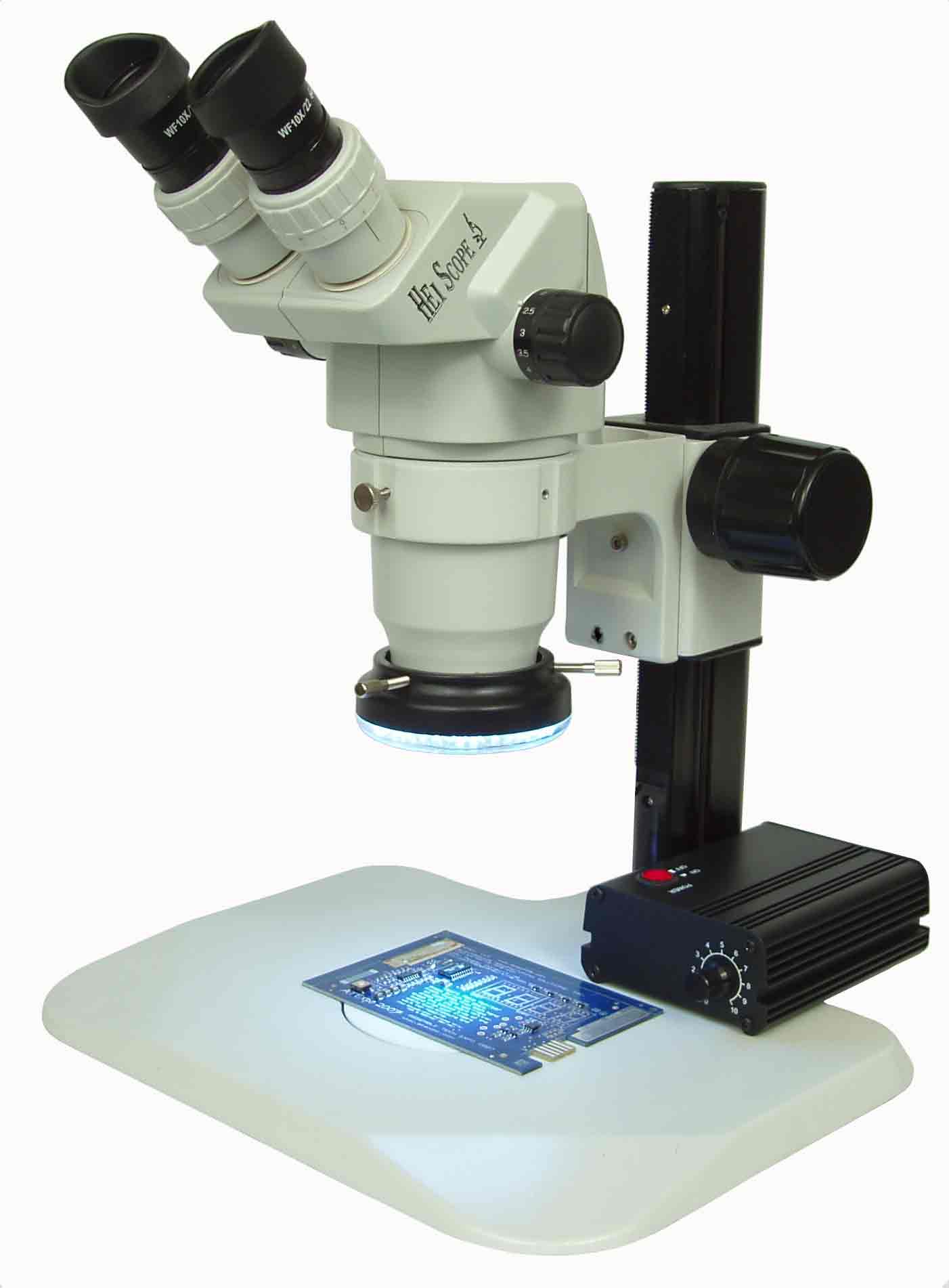

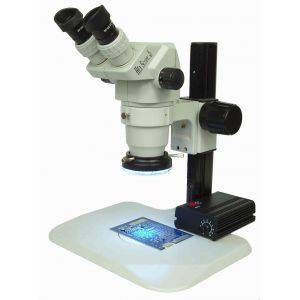

HEI Stereo Zoom Binocular, 10x eyepieces, eye guards, track stand with 76mm focus rack, ring adapter, 0.5x auxiliary lens, LED ring light and ESD safe microscope cover. Zoom Range of 3.4x - 22.5x with Working Distance of 7"
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
- Track stand with 76mm focus rack, Adjustable LED Ring Light 60 LED Bulbs
- 76mm focus rack with fine focus Weight 6.6 lb
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more
- 5 year warranty!
|
||||||||||||
Optical Specifications:
| Objective | 0.3X | 0.4X | 0.5X | 0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm | 217mm | 177mm | 117mm | 100mm | 47mm | 26mm | |
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x | 13.4x-90.0x |
| FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 | 43.8-6.5 | 32.8-4.9 | 21.9-3.3 | 16.4-2.4 | |
| 15X | Mag. | 3.0x-20.3x | 4.0x-27.0x | 5.0x-33.8x | 7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
| FOV | 79.6-11.9 | 59.7-8.9 | 47.8-7.1 | 31.8-4.7 | 23.9-3.6 | 15.9-2.4 | 11.9-1.8 | |
| 20X | Mag. | 4.0x-27.0x | 5.4x-36.0x | 6.7x-45.0x | 10.1x-67.5x | 13.4x-90.0x | 20.1x-135.0x | 26.8x-180x |
| FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 | |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
| FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 | |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
| FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 | |
