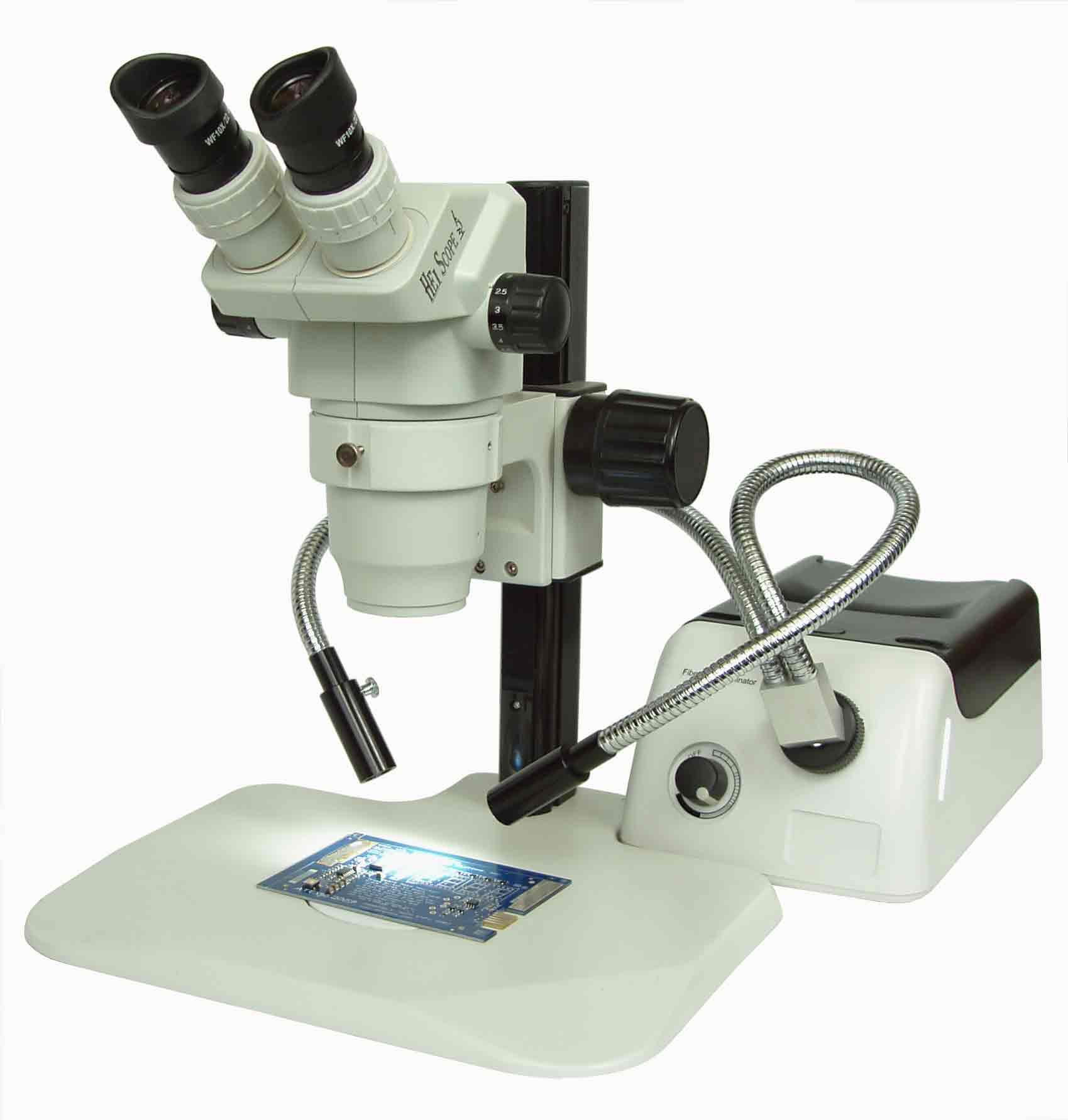

HEI-MP2-DP includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, track stand with 76mm focus rack, ring adapter, 0.5x auxiliary lens, fiber optic illuminator, dual pipe light guide and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7"
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
- Track stand with 76mm e-arm Weight 6.6 lbs
- 150 Watt Fiber Optic Illuminator with Dual Pipe Light
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more.
- 5 year warranty!
|
||||||||||||
Optical Specifications:
| Objective | 0.3X | 0.4X | 0.5X | 0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm | 217mm | 177mm | 117mm | 100mm | 47mm | 26mm | |
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x | 13.4x-90.0x |
| FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 | 43.8-6.5 | 32.8-4.9 | 21.9-3.3 | 16.4-2.4 | |
| 15X | Mag. | 3.0x-20.3x | 4.0x-27.0x | 5.0x-33.8x | 7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
| FOV | 79.6-11.9 | 59.7-8.9 | 47.8-7.1 | 31.8-4.7 | 23.9-3.6 | 15.9-2.4 | 11.9-1.8 | |
| 20X | Mag. | 4.0x-27.0x | 5.4x-36.0x | 6.7x-45.0x | 10.1x-67.5x | 13.4x-90.0x | 20.1x-135.0x | 26.8x-180x |
| FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 | |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
| FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 | |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
| FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 | |
