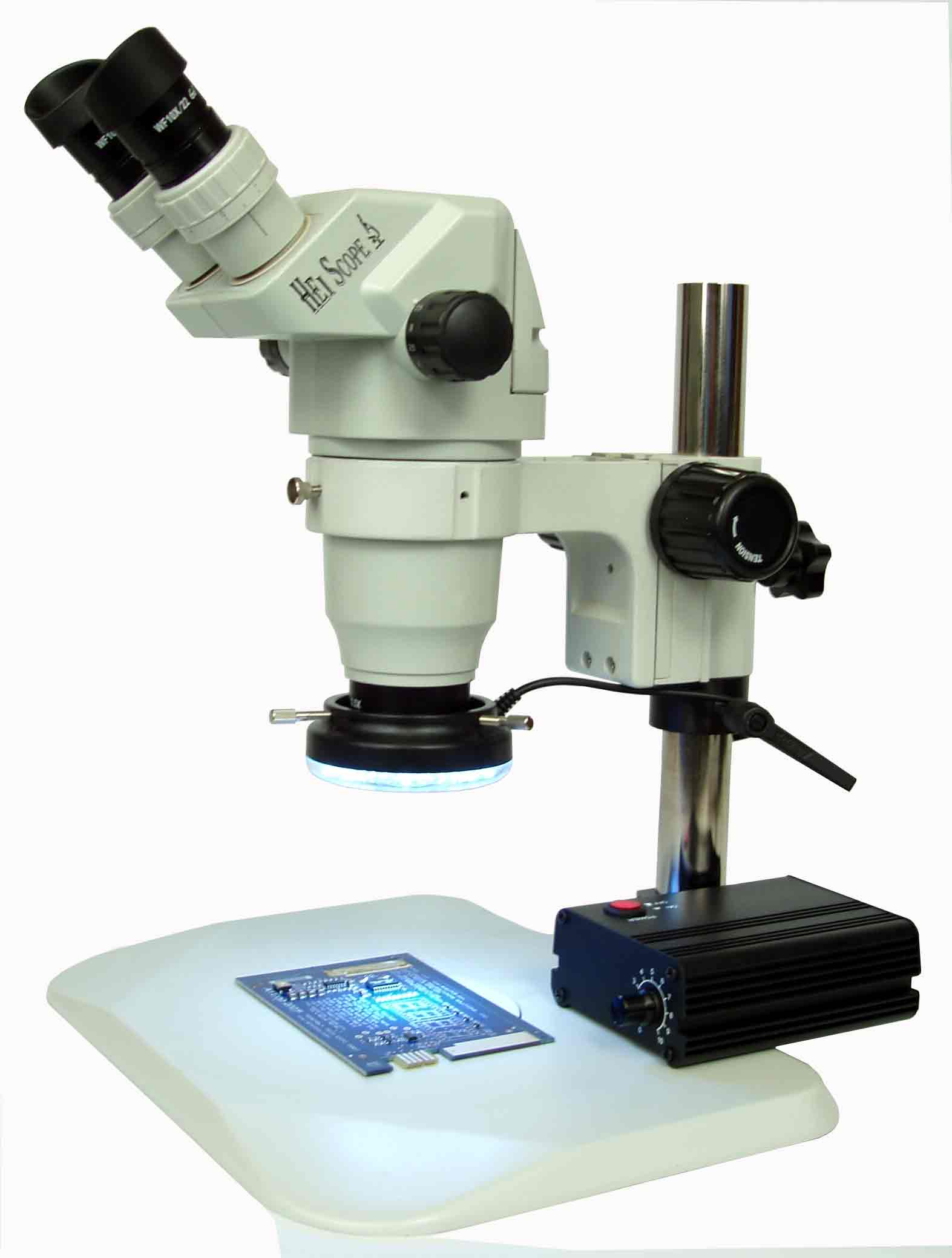

HEI-MP1-FR includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, post stand with 76mm focus rack, 0.5x auxiliary lens, ring adapter, 12 watt fluorescent ring light and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7".
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
- Post Stand with 76mm e-arm ( 6.6lbs)
- 12 watt fluorescent ring lamp
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more.
- 5 year warranty!
| In this Package: | |
| SZ05011121 | Stereo Zoom Binocular Microscope Body |
| ST02011102 | 76mm Post Stand |
| ML19241321 | LED Ring Light |
| SZ19024211 | 0.5 Auxilliary Lens |
Optical Specifications:
| Objective | 0.3X | 0.4X |
0.5X |
0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm |
217mm |
177mm |
117mm |
100mm |
47mm |
26mm |
|
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x |
13.4x-90.0x |
| FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
|
| 15X | Mag. |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
| FOV | 79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
|
| 20X | Mag. |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
| FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 | |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
| FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 | |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
| FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 | |
