HEI-MP7-LED Stereo Zoom Microscope Package

HEIScope
List price: $2,967.37
$1,621.00
You save: $1,346.37 (45%)
HEI-MP7-LED
+ −
Add to wish list Add to comparison list

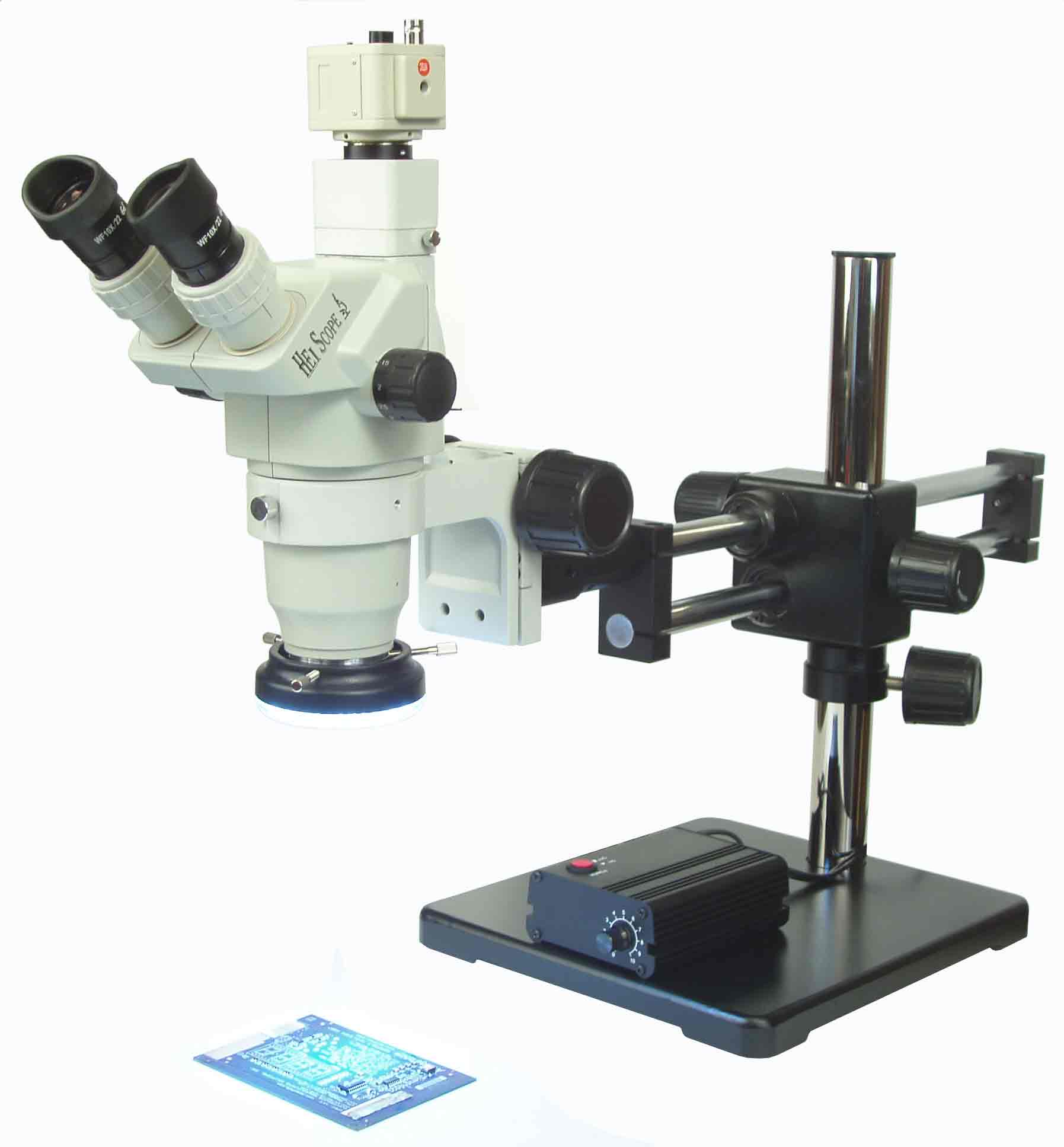

HEI-MP7-LED includes a Stereo Zoom trinocular head, 10x eyepieces, eye guards, dual arm boom stand with 76mm e-arm, ring adapter, 0.5x auxiliary lens, 0.5x video coupler, 1/3" CCD color camera, adjustable LED ring light guide and ESD safe microscope cover. 10x - 68x with WD of 7".

  • HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 1/3" CCD Color Camera with B&C Cable (480 TV Lines)
  • Pneumatic Arm with Table Clamp
  • Adjustable LED Ring Light 60 LED Bulbs Lamp Life: Minimum 10,000 hours
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • 0.5x video coupler, 1/3" CCD color camera
  • 5 year warranty!

    • Total magnification = auxiliary lens x objective x eyepieces

    Specs

    		OpticalVideo
    Magnification
    Ring Adapter6.7x - 45x20x - 135x
    0.5x lens3.4x - 22.5x10x - 68x
    Field of View
    Ring Adapter32.8mm - 4.9mm18mm - 2.6mm
    0.5x lens65.7mm - 9.8mm36mm - 5.2mm
    Working Distance
    ring adapter100mm100mm
    0.5x lens177mm177mm

    Optical Specifications:

    Objective0.3X0.4X

    0.5X

    		0.75X1X1.5X2.0X
    Working Distance (mm)287mm

    217mm

    177mm

    117mm

    100mm

    47mm

    26mm

    10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

    13.4x-90.0x

    FOV 109.5-16.382.1-12.265.7-9.8

    43.8-6.5

    32.8-4.9

    21.9-3.3

    16.4-2.4

    15X Mag.

    3.0x-20.3x

    		4.0x-27.0x

    5.0x-33.8x

    		7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x
    FOV 79.6-11.9

    59.7-8.9

    47.8-7.1

    31.8-4.7

    23.9-3.6

    15.9-2.4

    11.9-1.8

    20X Mag.

    4.0x-27.0x

    5.4x-36.0x

    6.7x-45.0x

    10.1x-67.5x

    13.4x-90.0x

    20.1x-135.0x

    26.8x-180x

    FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
    25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x
    FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
    30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x
    FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5


    Vendors :
    HEIScope
    Save 15% View Solutions SZ05013911 Eye Guards (Pair)
    SZ05013911
    View Solutions SZ05013911 Eye Guards (Pair)
    $7.08 $6.00
    SZ05013911, View Solutions

    HEI-EP-EG HEI Scope Eye Guards (Pair).

    + −
    Add to wish list Add to comparison list
    Save 51% HEI-EP-W10 SZ302101 HEI Scope Series Wide Field 10x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm diameter}.
    HEI-EP-W10
    HEI-EP-W10 SZ05013211 HEI Scope Series Wide Field 10x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm diameter}.
    $141.53 $70.00

    HEI-EP-W10 SZ302101 HEI Scope Series Wide Field 10x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm diameter}.

    + −
    Add to wish list Add to comparison list
    Save 48% HEI-EP-W15 SZ302103 HEI Scope Wide Field 15x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    HEI-EP-W15
    HEI-EP-W15 SZ05013411 HEI Scope Wide Field 15x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    $153.39 $80.00
    HEI-EP-W15 SZ302103 HEI Scope Wide Field 15x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    + −
    Add to wish list Add to comparison list
    Save 40% HEI-EP-W20 HEIScope Wide Field 20x Eyepieces (Pair) with Eyecups SZ302104
    HEI-EP-W20
    HEI-EP-W20 HEIScope Wide Field 20x Eyepieces (Pair) with Eyecups SZ05013611
    $153.39 $92.50
    HEI-EP-W20 SZ302104 HEI Scope Wide Field 20x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    + −
    Add to wish list Add to comparison list
    Save 48% HEI-EP-W25 SZ302105 HEI Scope Wide Field 25x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    HEI-EP-W25
    HEI-EP-W25 SZ05013711 HEI Scope Wide Field 25x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    $200.44 $105.00
    HEI-EP-W25 SZ302105 HEI Scope Wide Field 25x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    + −
    Add to wish list Add to comparison list
    Save 33% HEI-EP-W30 SZ302106 HEI Scope Wide Field 30x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    HEI-EP-W30
    HEI-EP-W30 HEIScope SZ08013811 HEI Scope Wide Field 30x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    $224.15 $150.00
    HEI-EP-W30 SZ302106 HEI Scope Wide Field 30x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    + −
    Add to wish list Add to comparison list
    Save 23% HEI-AL-03 03x Auxiliary Lens
    HEI-AL-03
    HEI-AL-03 HEI Scope Series .3x Auxiliary Lens. SZ05014111
    $129.67 $100.00

    HEI-AL-03 HEI Scope Series .3x Auxiliary Lens.

    + −
    Add to wish list Add to comparison list
    Save 23% View Solutions SZ19024211 .5x Auxiliary Lens
    SZ19024211
    View Solutions SZ19024211 .5x Auxiliary Lens
    $129.67 $100.00
    SZ19024211, View Solutions

    HEI-AL-05 HEI Scope Series .5x Auxiliary Lens

    + −
    Add to wish list Add to comparison list
    Save 23% HEI-AL-07 .75x Auxiliary Lens
    HEI-AL-07
    HEI-AL-07 HEI Scope Series 0.7x Auxiliary Lens SZ05014311
    $129.67 $100.00

    HEI-AL-07 HEI Scope Series .75x Auxiliary Lens.

    + −
    Add to wish list Add to comparison list
    Save 25% HEI-AL-10 Ring Light Adaptor
    HEI-AL-10
    HEI-AL-10 HEI Scope Series Ring Light Adaptor SZ0501491
    $16.00 $12.00

    HEI-AL-10 HEI Scope Series Ring Light Adaptor.

    + −
    Add to wish list Add to comparison list
    Save 39%
    HEI-AL-15
    HEI-AL-15 HEIScope Series 1.5x Auxiliary Lens. SZ05014511
    $165.06 $100.00
    HEI-AL-15 HEI Scope Series 1.5x Auxiliary Lens. SZ303104
    + −
    Add to wish list Add to comparison list
    Save 33% HEI-AL-20 2x Auxiliary Lens
    HEI-AL-20
    HEI-AL-20 HEI Scope Series 2x Auxiliary Lens. SZ05014611
    $165.06 $110.00

    HEI-AL-20 HEI Scope Series 2x Auxiliary Lens.

    + −
    Add to wish list Add to comparison list

    Fiber Optic Illuminator Manual (HEI-FOI-150_Fiber_Optic_Illuminator_Instruction_Manual.pdf, 185 Kb) [Download]

    SZ Stereo Zoom Instruction Manual (SZ_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 224 Kb) [Download]

    Dual Arm Boom Stand Manual (Dual_Arm_Stand_Instruction_Manual.pdf, 230 Kb) [Download]

    LED Ring Light Manual (HEI-RL-LED-60_LED_Ring_Light_Instruction_Manual.pdf, 54 Kb) [Download]
