HEI-MP9-DP HEIScope Stereo Zoom Trinocular Microscope Package

List price: $2,793.13
$2,507.00
You save: $286.13 (10%)
HEI-MP9-DP
+

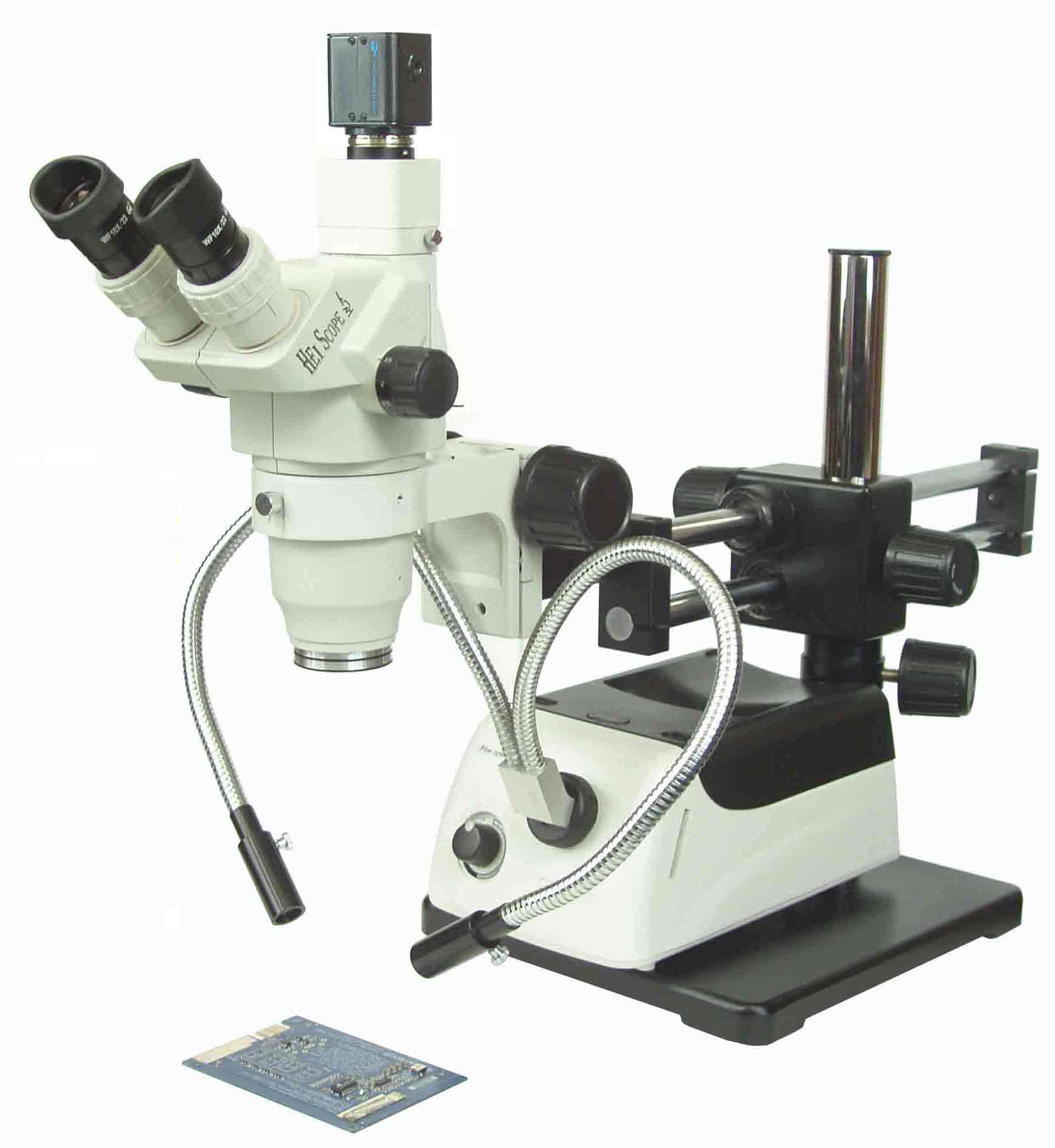

HEI-MP9-DP includes a Stereo Zoom Trinocular head, 10x eyepieces, eye guards, Dual arm boom stand with 76mm e-arm, ring adapter, 0.5x auxiliary lens, 0.5x video coupler, 5M USB 2.0 CMOS Color Digital Camera,  150 Watt fiber optic illuminator with dual pipe light guide and ESD safe microscope cover. 10x - 68x with WD of 7".

  • HEI Stereo Zoom Trinocular Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 5M USB 2.0 CMOS Color Digital Camera (DC30111132
  • Dual Arm Boom Stand with 76mm E-Arm (40.0 lbs)
  • 150 Watt Fiber Optic Illuminator with Dual Pipe Light
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • 0.5x video coupler, 1/3" CCD color camera
  • 5 year warranty!
  • In this Package:
    SZ05011131 Stereo Zoom Trinocular Microscope Body
    ST02061101 Dual Arm Boom Stand
    SA02021102 76mm E-Arm
    ML02311111 Fiber Optic Illuminator
    ML25921101 Dual Pipe Light Guide
    SZ19024211 0.5x Auxiliary Lens
    DC30111132 5M USB 2.0 CMOS Color Digital Camera
    SZ05016131  View Solutions 0.5X Video Coupler


    Total magnification = auxiliary lens x objective x eyepieces

    Specs

    OpticalVideo
    Magnification
    Ring Adapter6.7x - 45x20x - 135x
    0.5x lens3.4x - 22.5x10x - 68x
    Field of View
    Ring Adapter32.8mm - 4.9mm18mm - 2.6mm
    0.5x lens65.7mm - 9.8mm36mm - 5.2mm
    Working Distance
    ring adapter100mm100mm
    0.5x lens177mm177mm

    Optical Specifications:

    Objective0.3X0.4X

    0.5X

    0.75X1X1.5X2.0X
    Working Distance (mm)287mm

    217mm

    177mm

    117mm

    100mm

    47mm

    26mm

    10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

    13.4x-90.0x

    FOV 109.5-16.382.1-12.265.7-9.8

    43.8-6.5

    32.8-4.9

    21.9-3.3

    16.4-2.4

    15X Mag.

    3.0x-20.3x

    4.0x-27.0x

    5.0x-33.8x

    7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x
    FOV 79.6-11.9

    59.7-8.9

    47.8-7.1

    31.8-4.7

    23.9-3.6

    15.9-2.4

    11.9-1.8

    20X Mag.

    4.0x-27.0x

    5.4x-36.0x

    6.7x-45.0x

    10.1x-67.5x

    13.4x-90.0x

    20.1x-135.0x

    26.8x-180x

    FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
    25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x
    FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
    30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x
    FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5


    Vendors :
    HEIScope
    SZ05013911
    $7.08 $6.00
    SZ05013911, View Solutions

    HEI-EP-EG HEI Scope Eye Guards (Pair).

    +

    HEI-EP-W10
    $141.53 $70.00

    HEI-EP-W10 SZ302101 HEI Scope Series Wide Field 10x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm diameter}.

    +

    HEI-EP-W15
    $153.39 $80.00
    HEI-EP-W15 SZ302103 HEI Scope Wide Field 15x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    +

    HEI-EP-W20
    $153.39 $92.50
    HEI-EP-W20 SZ302104 HEI Scope Wide Field 20x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    +

    HEI-EP-W25
    $200.44 $105.00
    HEI-EP-W25 SZ302105 HEI Scope Wide Field 25x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    +

    HEI-EP-W30
    $224.15 $150.00
    HEI-EP-W30 SZ302106 HEI Scope Wide Field 30x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
    +
    HEI-AL-03
    $129.67 $100.00

    HEI-AL-03 HEI Scope Series .3x Auxiliary Lens.

    +

    SZ19024211
    $129.67 $100.00
    SZ19024211, View Solutions

    HEI-AL-05 HEI Scope Series .5x Auxiliary Lens

    +

    HEI-AL-07
    $129.67 $100.00

    HEI-AL-07 HEI Scope Series .75x Auxiliary Lens.

    +

    HEI-AL-10
    $16.00 $12.00

    HEI-AL-10 HEI Scope Series Ring Light Adaptor.

    +

    HEI-AL-15
    $165.06 $100.00
    HEI-AL-15 HEI Scope Series 1.5x Auxiliary Lens. SZ303104
    +

    HEI-AL-20
    $165.06 $110.00

    HEI-AL-20 HEI Scope Series 2x Auxiliary Lens.

    +

    SZ Stereo Zoom Instruction Manual (SZ_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 224 Kb) [Download]

    Dual Arm Boom Stand Manual (Dual_Arm_Stand_Instruction_Manual.pdf, 230 Kb) [Download]

    Fiber Optic Illuminator Manual (HEI-FOI-150_Fiber_Optic_Illuminator_Instruction_Manual.pdf, 185 Kb) [Download]

    Camera Manual (UCM1300Manual.pdf, 1,436 Kb) [Download]

    V.I.S.Version 2.5 Professional (vis20Pro.pdf, 2,098 Kb) [Download]
