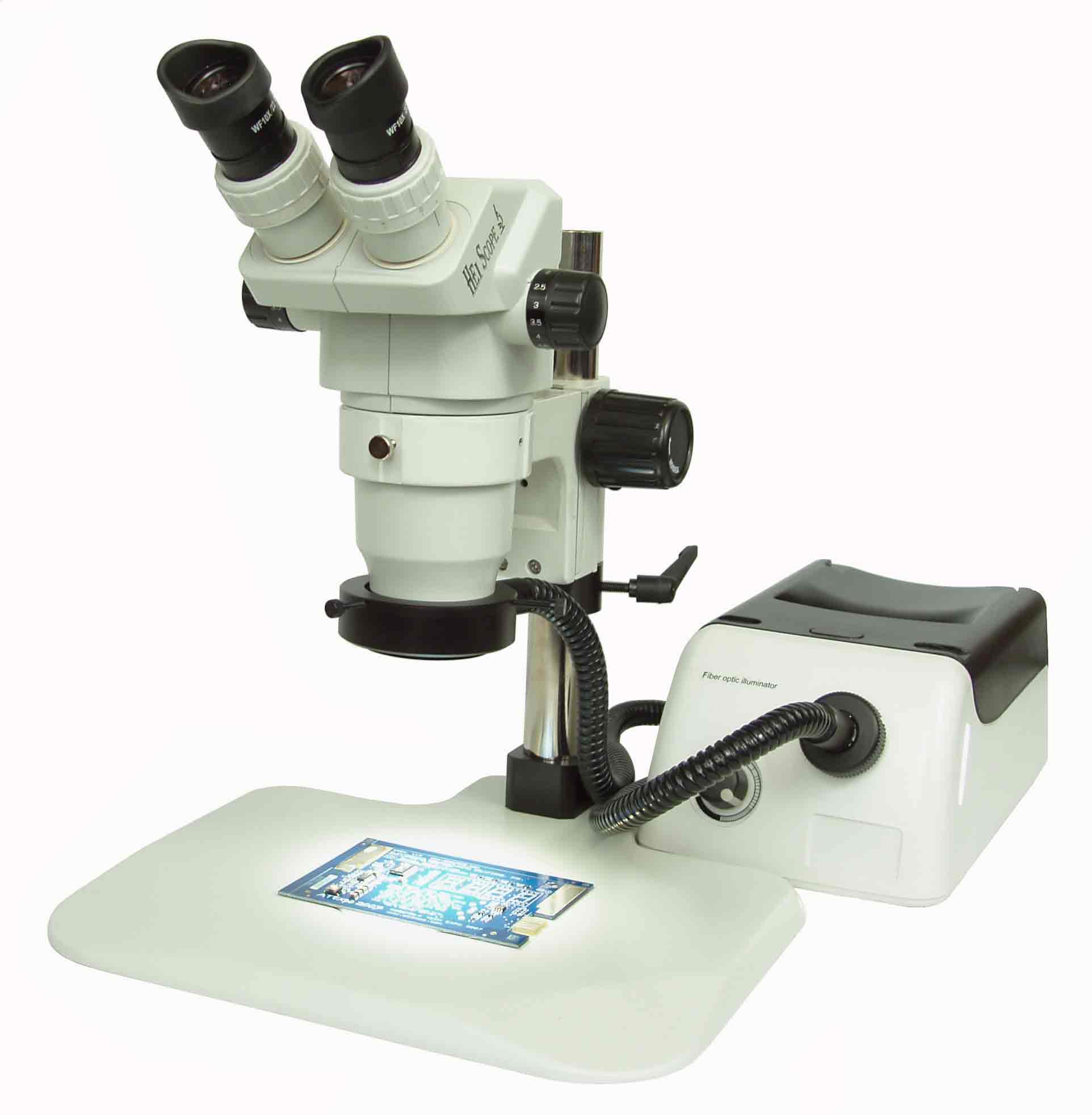

HEI-MP1-AR includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, post stand with 76mm focus rack, 0.5x auxiliary lens, ring adapter, fiber optic illuminator, 36" annular ring light guide and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7"
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x) (SZ19024211)
- Post Stand with 76mm e-arm 6.6lbs (ST02011102)
- 150 Watt Fiber Optic Illuminator with Annular Ring Light Guide (ML02311111) (ML26913101)
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more.
- 5 year warranty!
|
||||||||||||
Optical Specifications:
| Objective | 0.3X | 0.4X |
0.5X |
0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm |
217mm |
177mm |
117mm |
100mm |
47mm |
26mm |
|
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x |
13.4x-90.0x |
| FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
|
| 15X | Mag. |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
| FOV | 79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
|
| 20X | Mag. |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
| FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 | |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
| FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 | |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
| FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 | |
