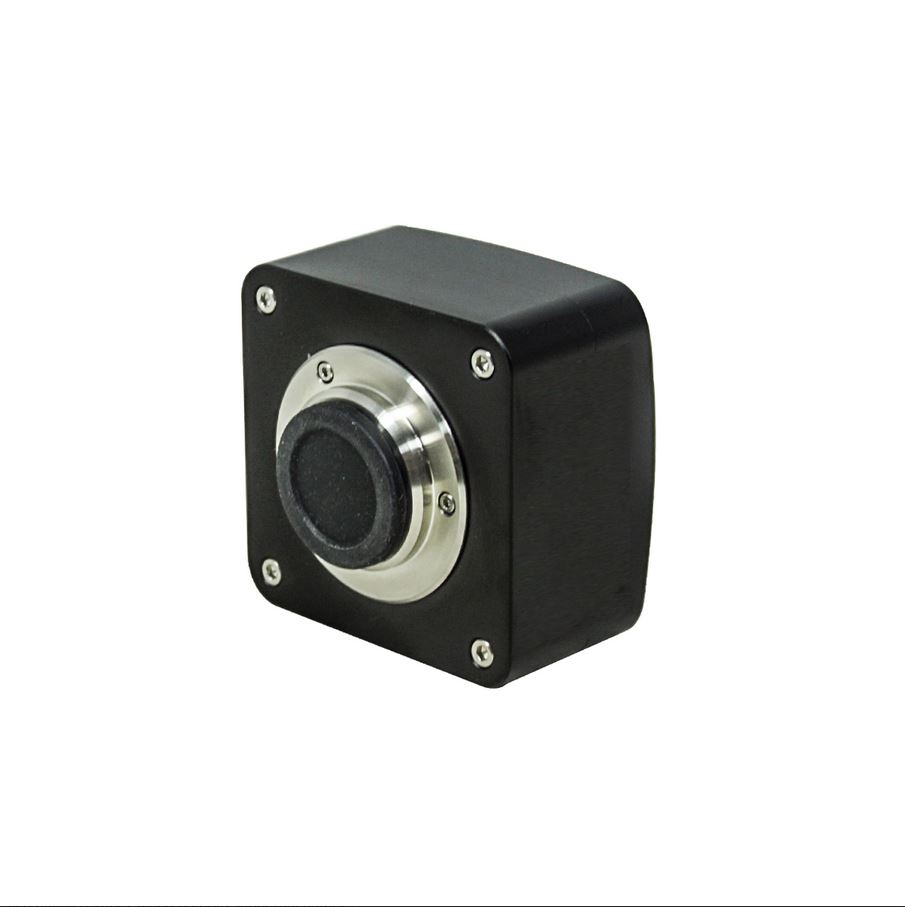

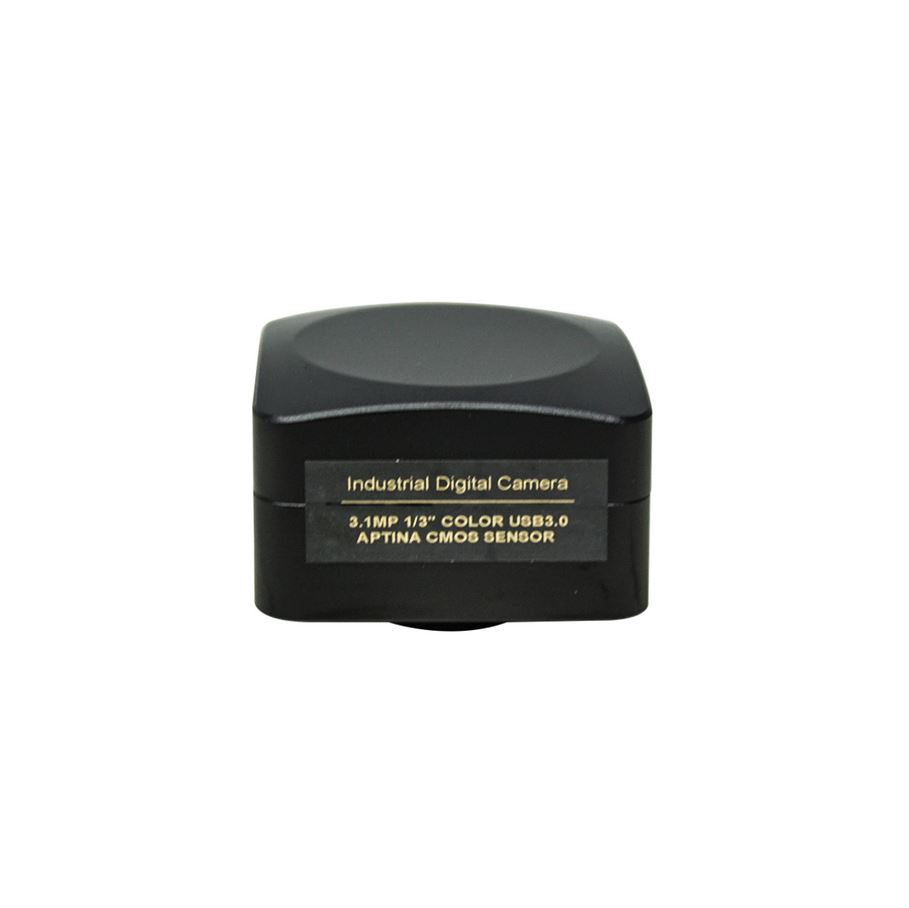

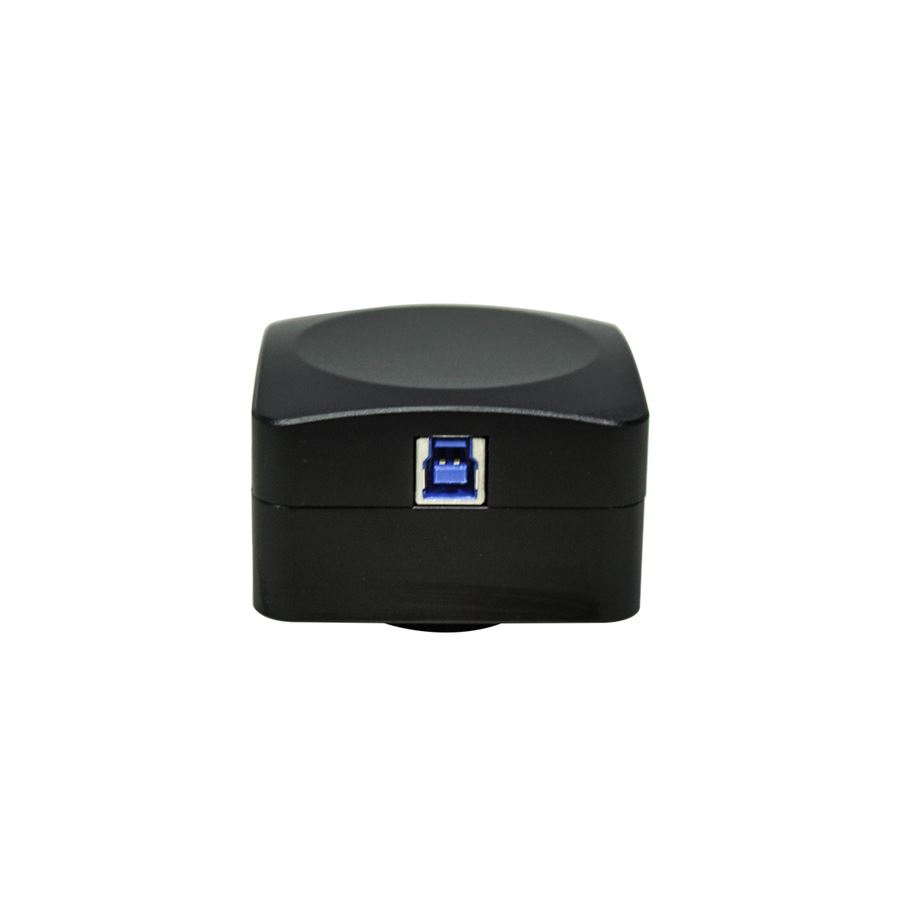

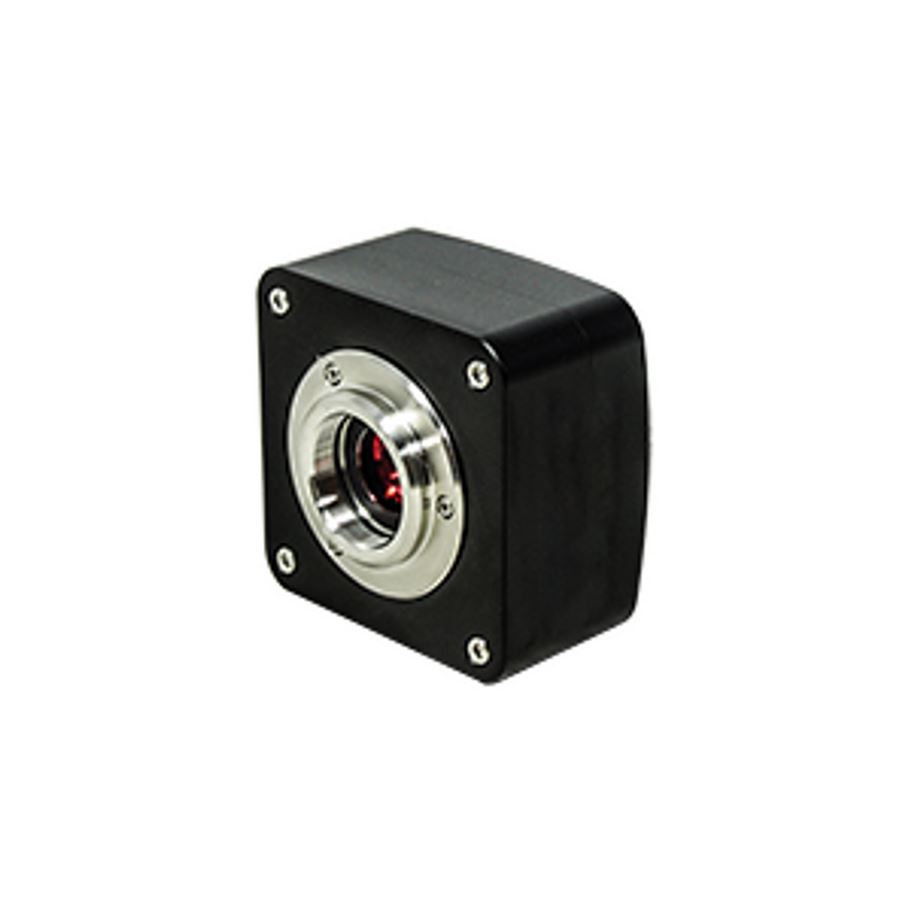

DC29111112 3M USB 3.0 CMOS Color Digital Camera
Image Sensor CMOS
Image Sensor Size 1/3 in
Image Sensor Diagonal Size 6mm(0.236 in)
Camera Maximum Pixels 3.0 Megapixels
Pixel Size 2.2x2.2um
Camera Resolution 2048x1536
Camera Signal Output Port USB 3.0
Camera Locking Screw Size 1/4-20 in
Camera Lens Mount C-Mount
Transmission Frame Rate 27.3fps@2048x1534, 53.3fps@1024x770
White Balance Manual/Auto
Sensitivity 1.9V/lux-sec@550nm
Gain Control Adjustable
Exposure Control Manual/Auto
Camera Crosshairs Grid
Line Color User Defined
Capture Function Yes
Image Capture Output Format TIFF/JPG/BMP/PNG
Measurement Function Yes
Video Output Format WMV/H264/AVI
Language English/French/German/Indonesian/Japan/Chinese/Polish/Russian
System Requirement Windows XP/Vista/7/8/10/11/OSX/Linux 2.6 and above
Driver Installation Driver Free
API Native C/C++, C#, DirectShow, Twain Control API
Camera Operation Temperature -10-50C(14-122F)
Camera Operation Humidity 30-80%
Camera Housing Material Metal
Camera Housing Size 68x68x45mm
Camera Housing Color Black
Surface Treatment Black Oxide Finish
Material Metal
Color Black
Net Weight 0.39kg(0.86lbs)
Calibration Yes
Image Stitching Yes
