Digital Surface Resistance Meter. Used to test ESD mat resistance, ESD foam resistance, or surface resistance of many other materials to determine if they are conductive or static dissipative.
Specifications
Measuring Range: 10^3 to 10^10 ohms
Resistance Error Range: +/- One order of magnitude
Response time of resistance measurement: 1s
Measuring temperature range: 0C to 50C (32F to 122F)
Measuring precision of temperature: +/- 2C
Power supply: requires one 9V battery, not included
Dimensions: 63.6 x 31.0 x 125.8 mm
Weight: 157.6 g
Parts Included:

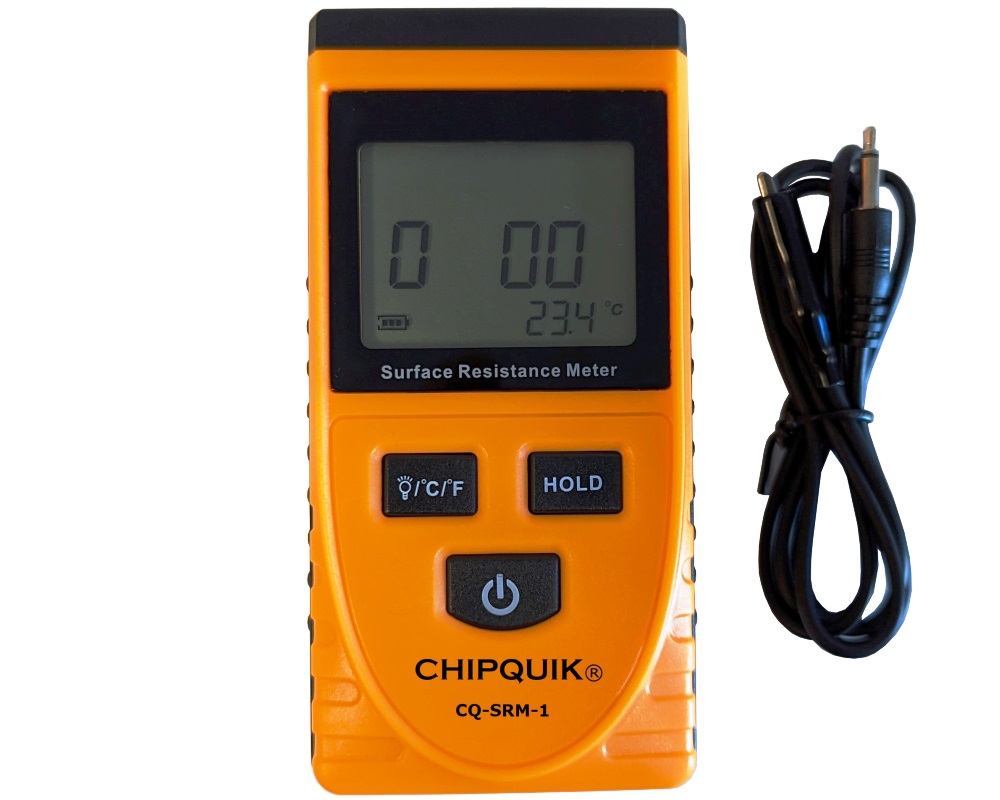

CQ-SRM-1 surface resistance meter
Ground cable
