Digital Oscilloscope with built-in multi-meter functionality.
Specifications
Bandwidth: 10MHz
Sampling rate: 42MSa/s real-time sampling
Channels: 1
Input Coupling: AC/DC
Input Resistance: 1Mohm @ 16pF
Probe Attenuation: X1, X10
Max Input Voltage: 150V (DC + AC peak)
Horizontal sample rate range: 1.5 to 48 MSa/s
Waveform interpolation: (sinx)x
Sweep speed range: 100ns/div to 20s/div
Time Base Accuracy: 20ppm
Record Length: Max 64Kbyte
Vertical sensitivity: 20mV/div to 10V/div
Displacement range: 4 cells (positive and negative)
Analog Bandwidth: 10MHz
Low Frequency Response: >10Hz
Rise Time: <10ns
DC Gain Accuracy: +/- 3%
Automatic Measurement: Period, Frequency, Peak-to-Peak Value, Maximum Value, Minimum Value, Effective Value
Trigger Method: Auto, Normal, Single
Trigger Edge: Rising Edge, Falling Edge
Power supply: Powered by 1x 18650 Lithium Ion Rechargeable Battery (Included, pre-installed)
Charging: USB-C charging, Comes with USB-A to USB-C charge cable, requires USB-A 5VDC power adapter to connect to 120VAC power for charging (not included)
Weight: 734 g (includes bag and all parts)

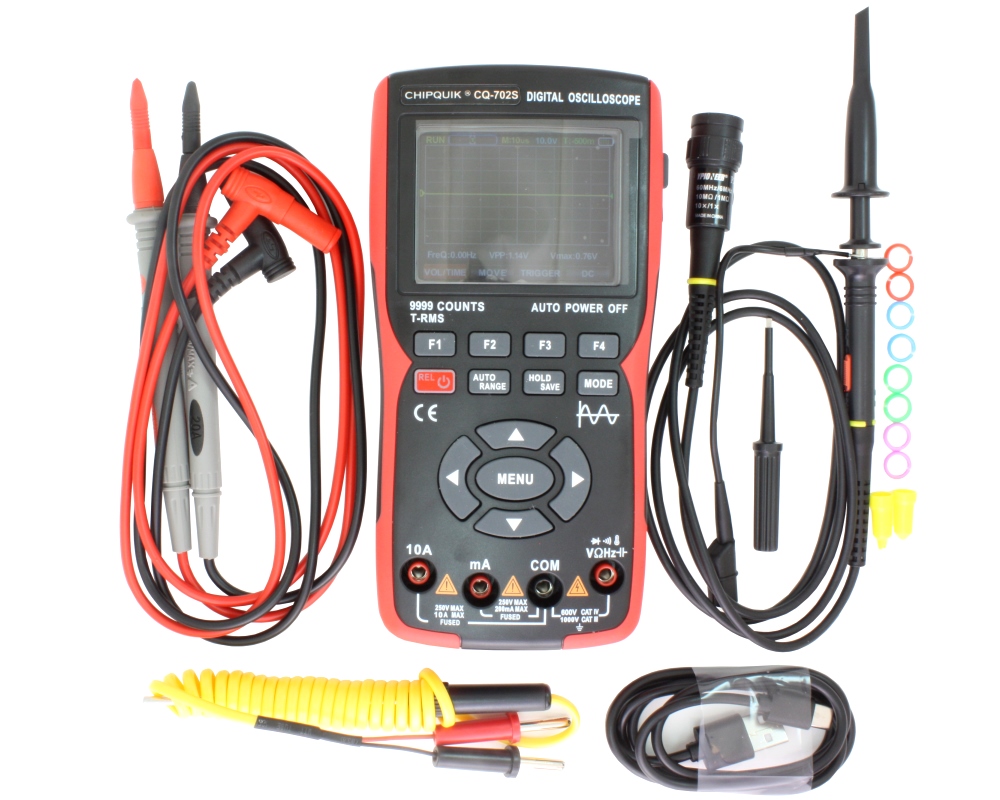

Parts Included:
CQ-702S Digital Oscilloscope
Oscilloscope Probe (X1, X10 attenuation)
Multimeter Probes
Temperature Probe
USB-A to USB-C cable
